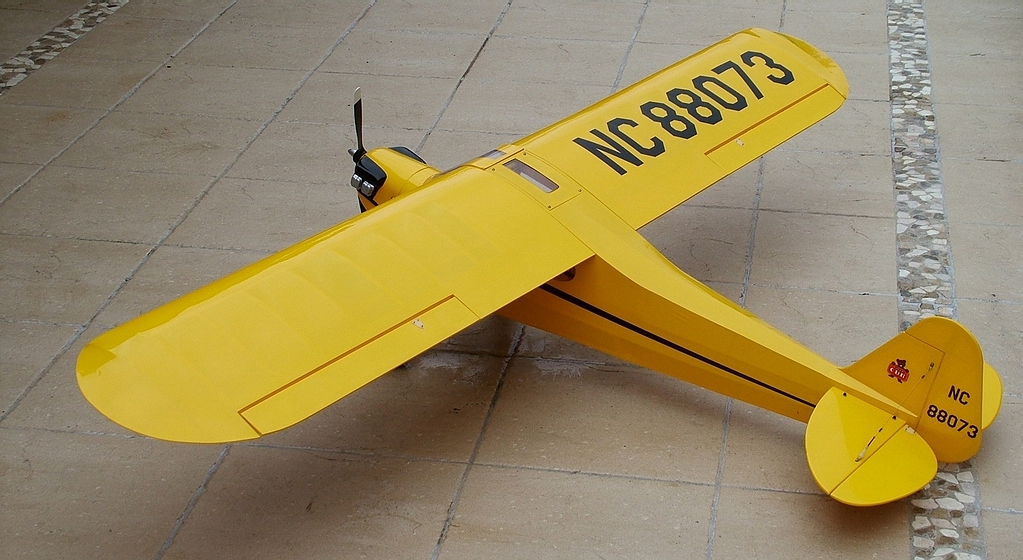

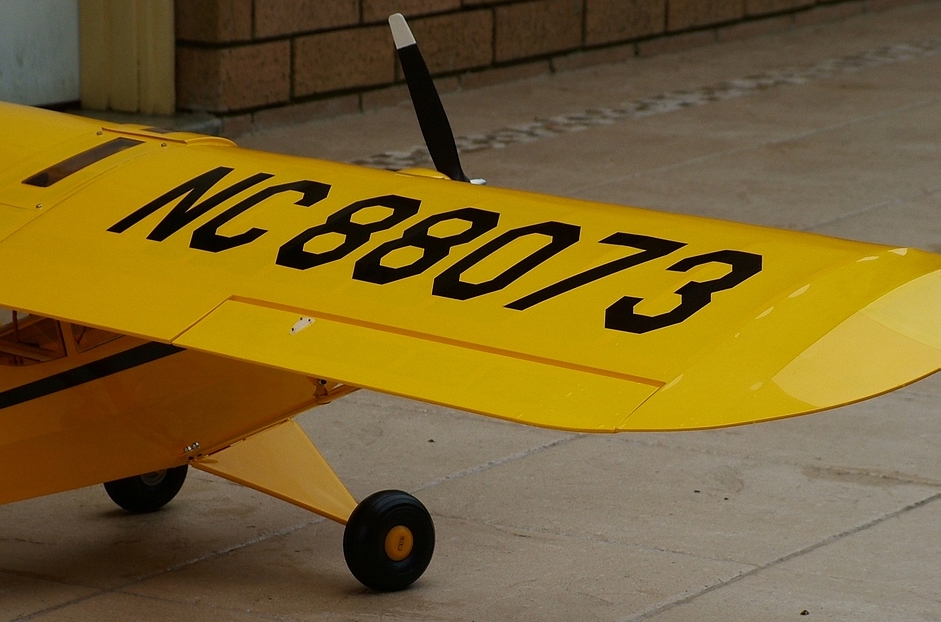

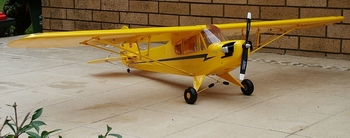

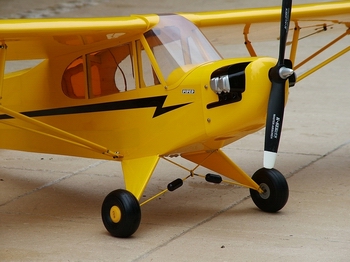

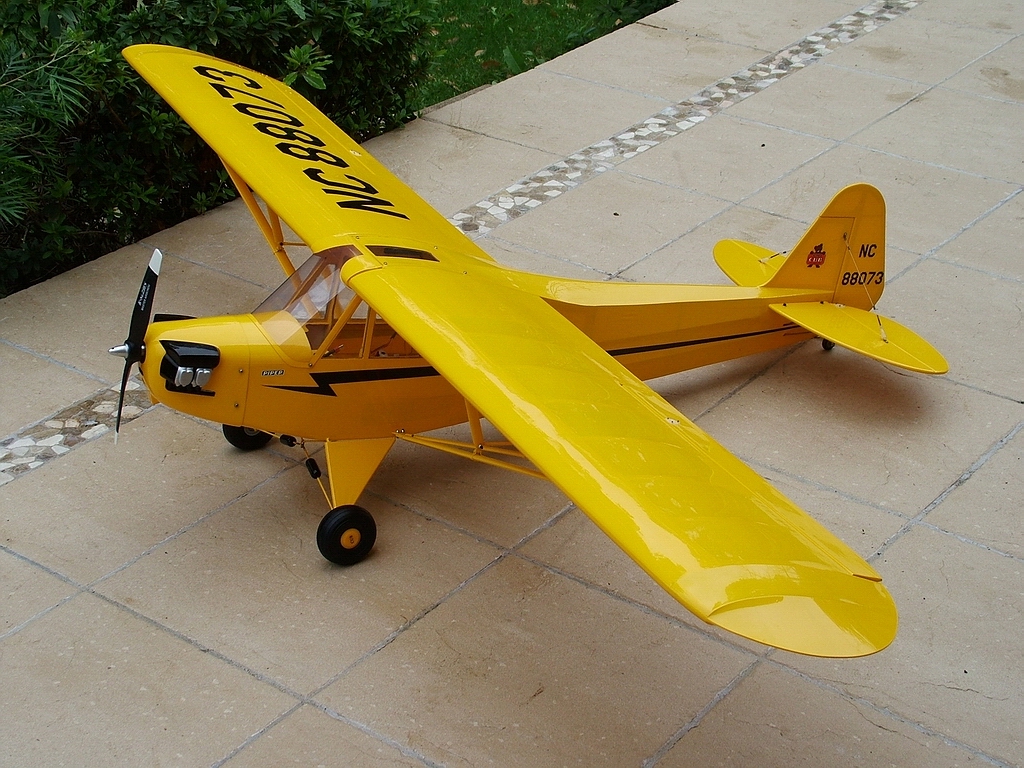

Hangar 9 Cub 40

Hangar 9 Cub 40 - 2032mm

January-2010

Statistics:
Wing Span:
Length:
Weight:
Wing Area:
Wing Loading:

Essential Features:

Radio Setup:

Comments:

2,032mm
1,285mm
Approximately 3,300 grams with 5S1P 3000 20C battery.
59.3dm²
Approximately 55.6grams/dm² - very docile and easy to manage!

- Electric Powered using:

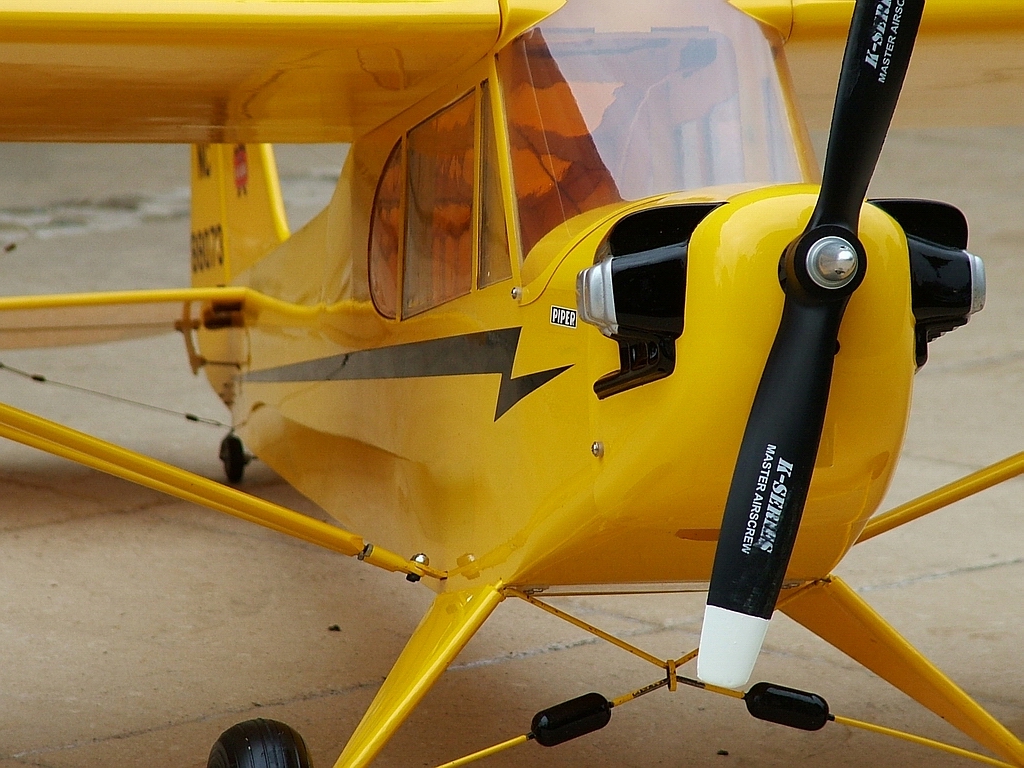

   - 13x8 Master Airscrew prop.
   - E-flite Power 46 670KV outrunner - Enough power for mild aerobatics.
   - 60A Plush Speed Controller.
   - 5S1P (4000 or more) 30c+ LiPo battery.
   - No extra weight added to achieve COG. Battery adjustment used for fine tuning.

Spektrum DX7s transmitter with AR6200 6 channel receiver (full range) with
4 x HS-311 analog plastic gear servos, very nice and quiet, on all control surfaces.

- Access to inside fuselage is via windscreen held in with just two screews.
- Also, there is a cabin roof panel that comes off for added access during rigging.
- Colours employed - Cub Yellow (HANU884), Black (HANU874)

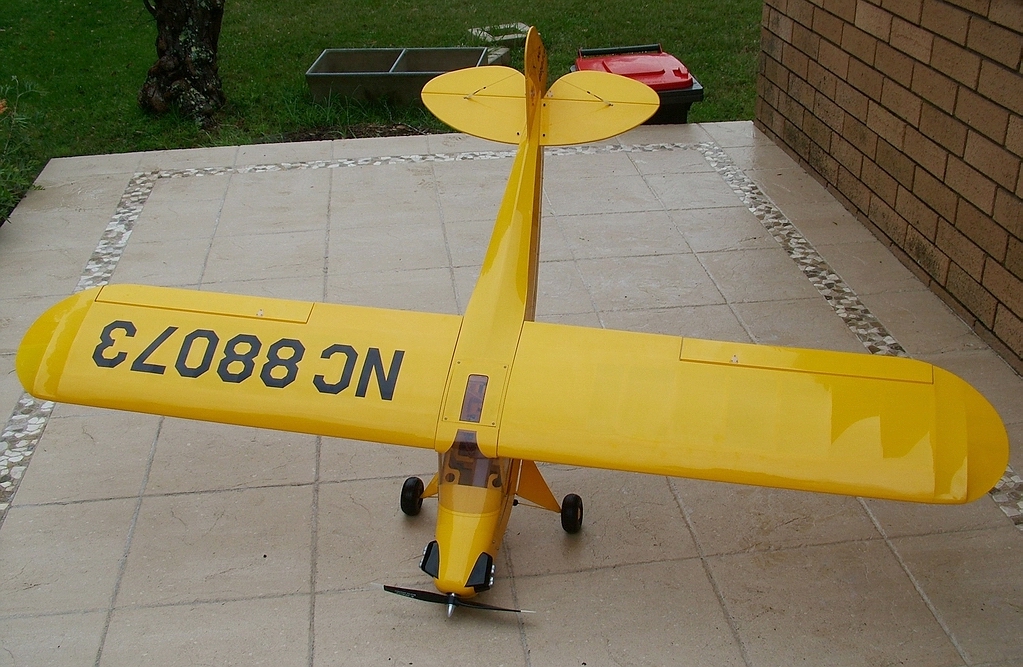

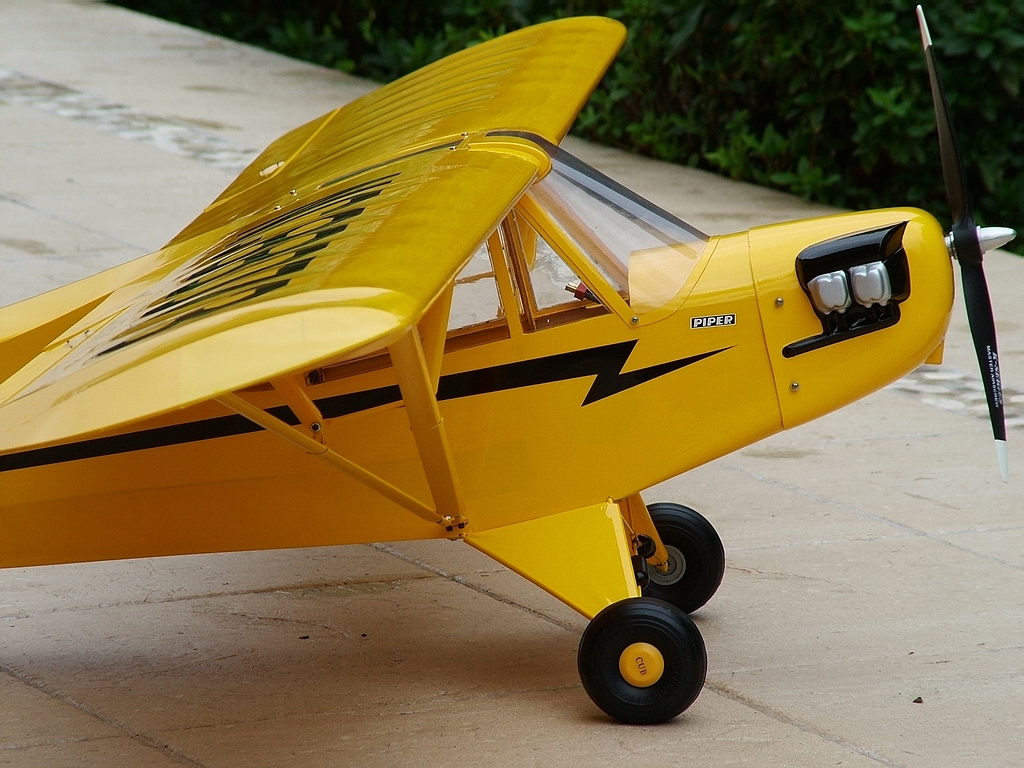

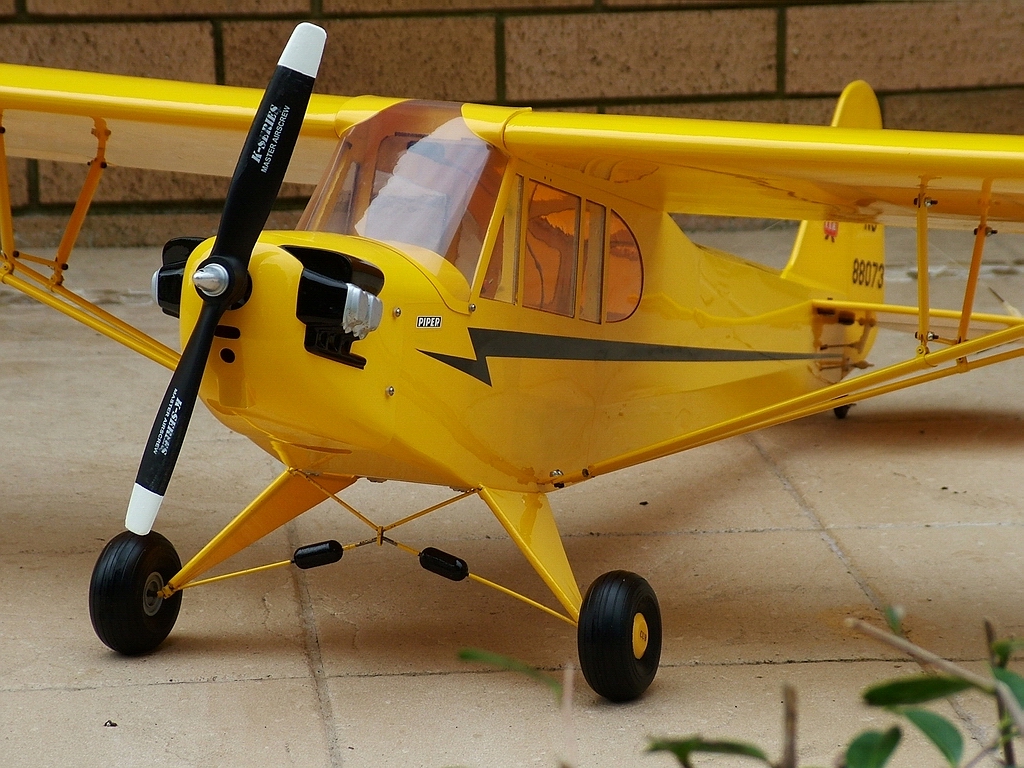

Completed Assembly - January 2010 - of this plane and have flown about 4 times at Fagan Park.

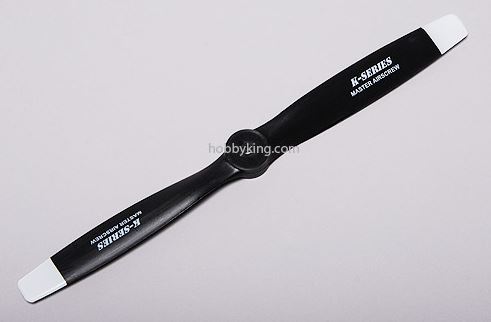

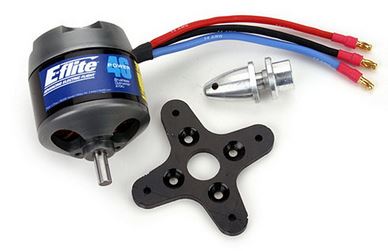

Assembly Manual	Master Airscrew 13x8 Propellor	E-Flite Power 46 679KV Motor

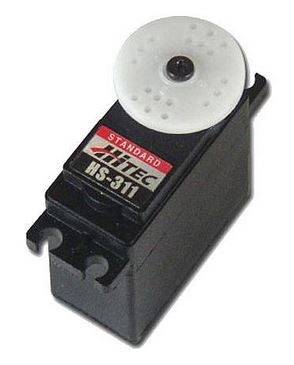

	4 x HS-311 Std Servos Used throughout!
