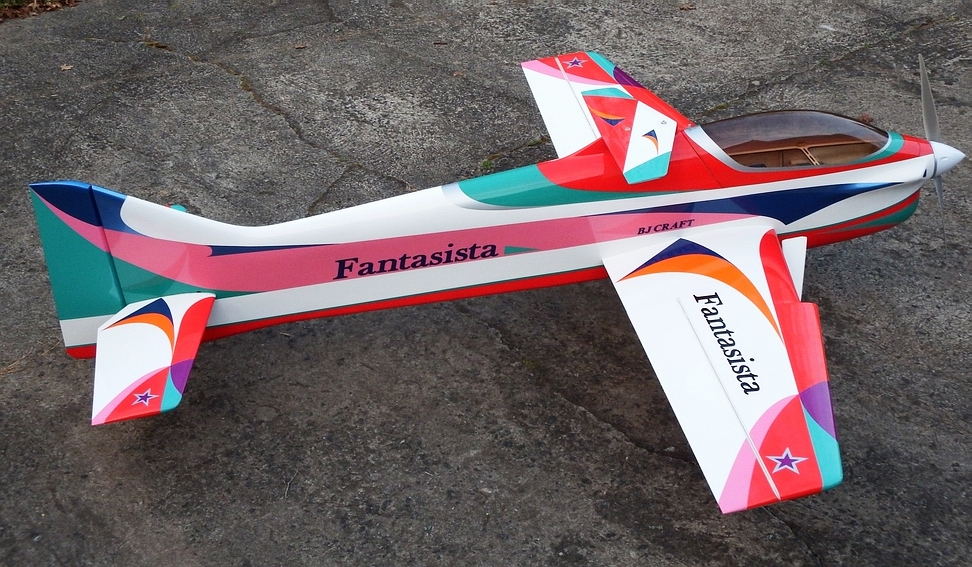

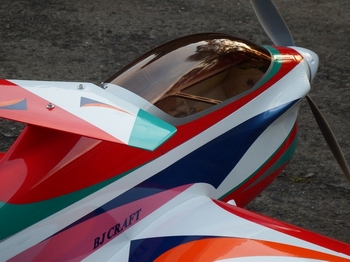

| BJ Craft Fantasista 70 - 1500mm | June-2014 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

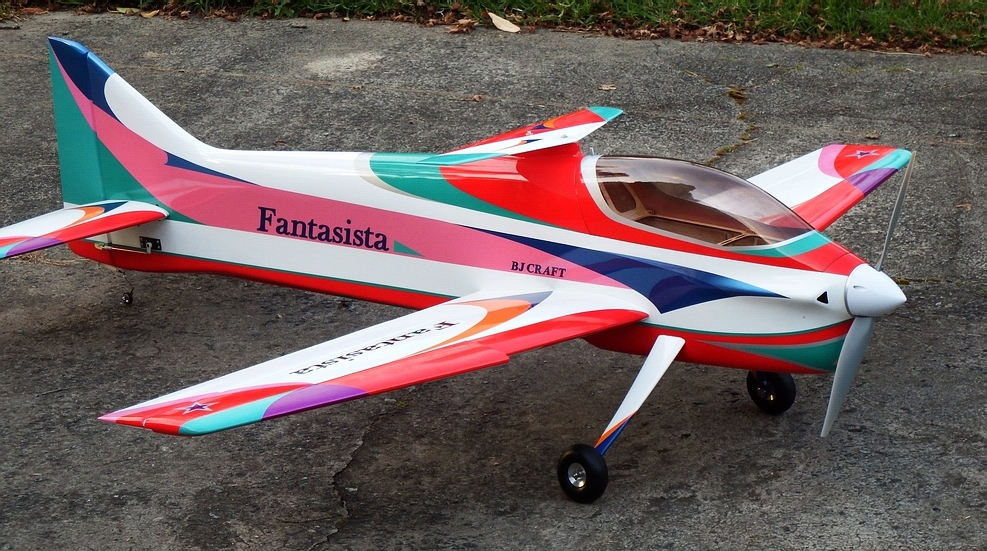

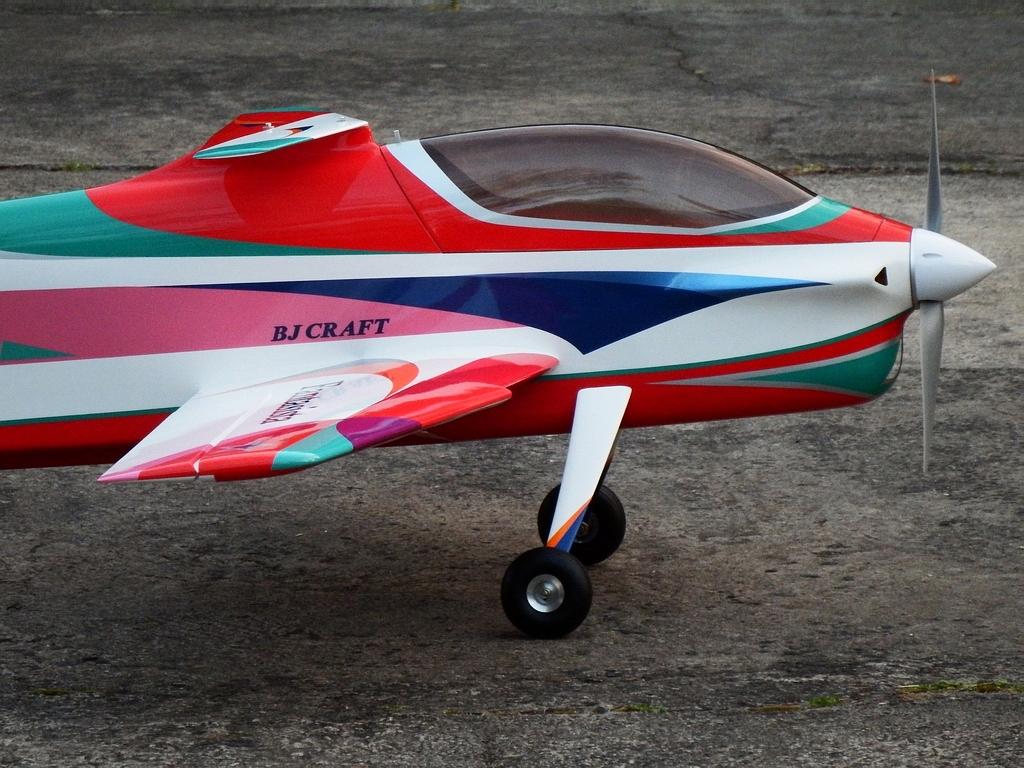

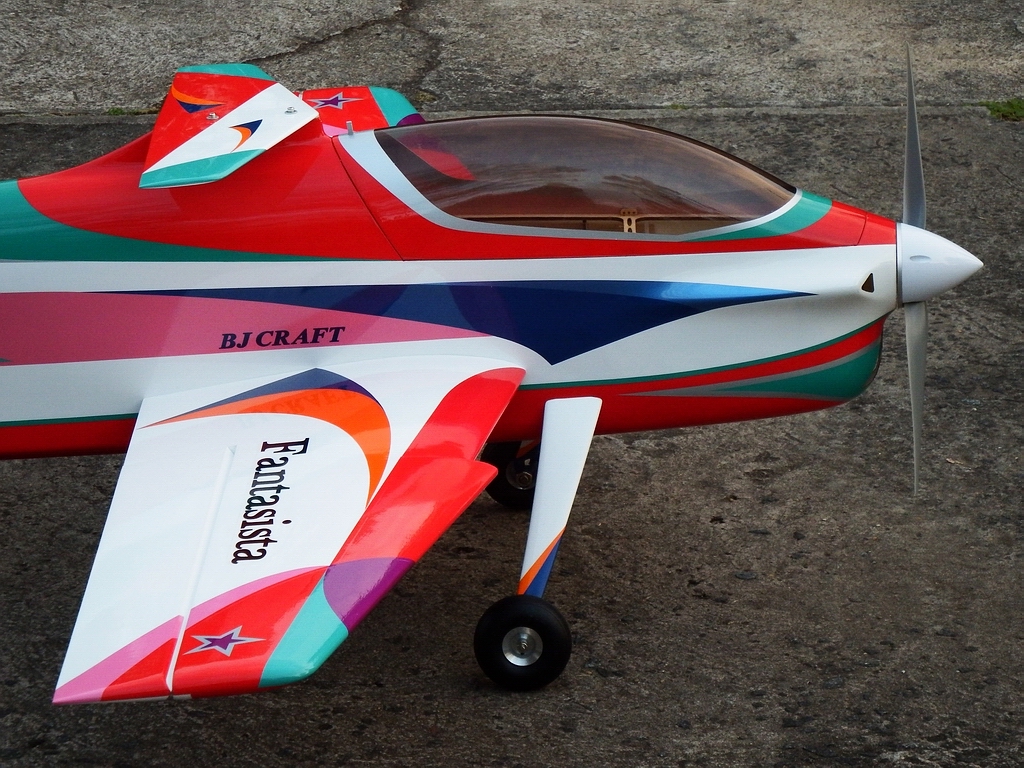

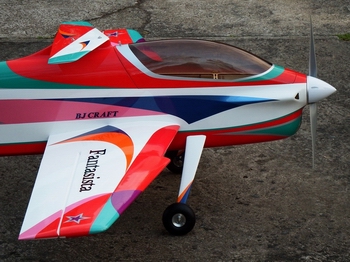

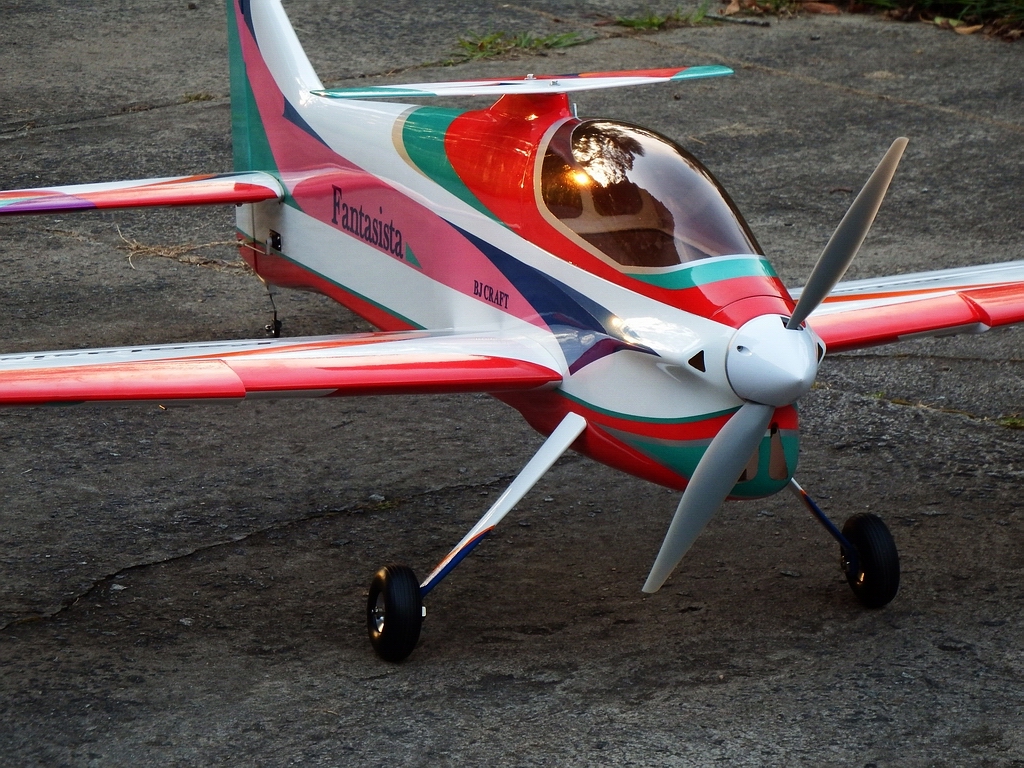

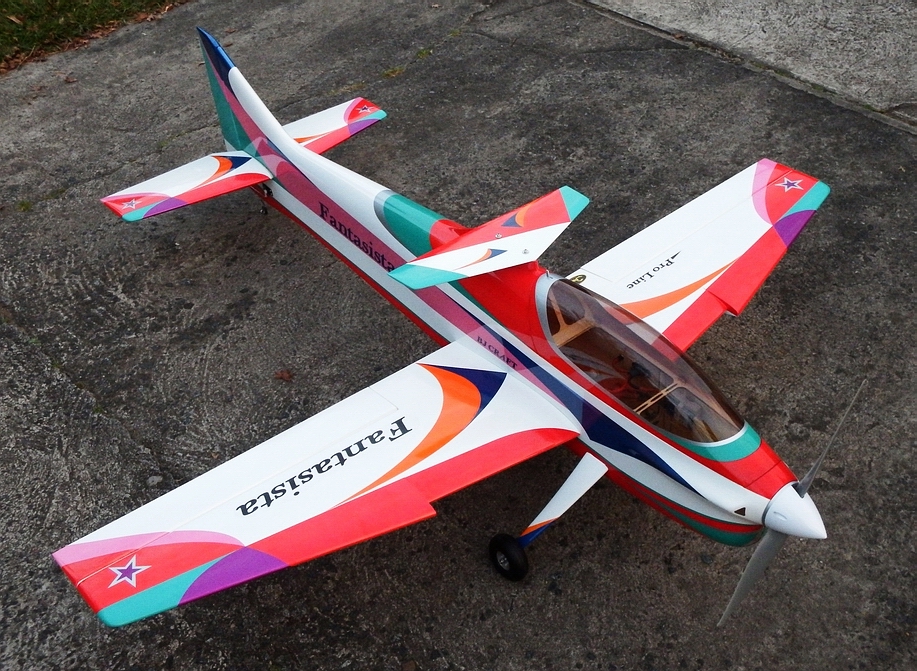

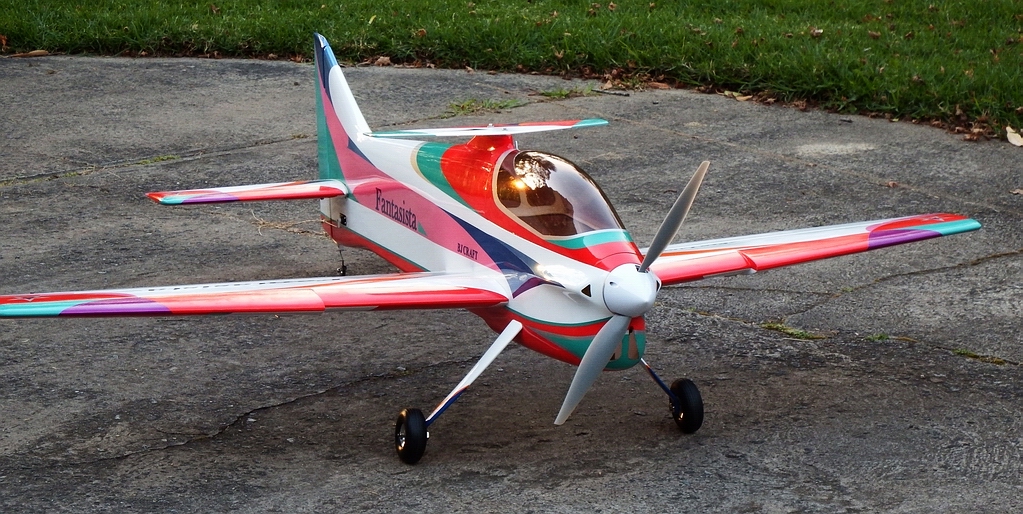

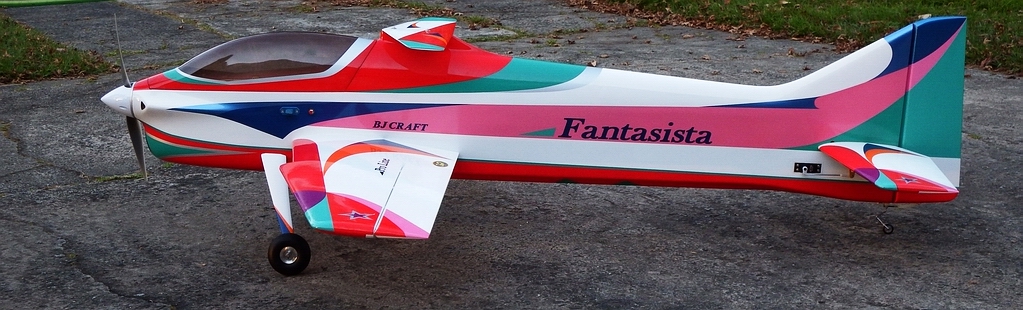

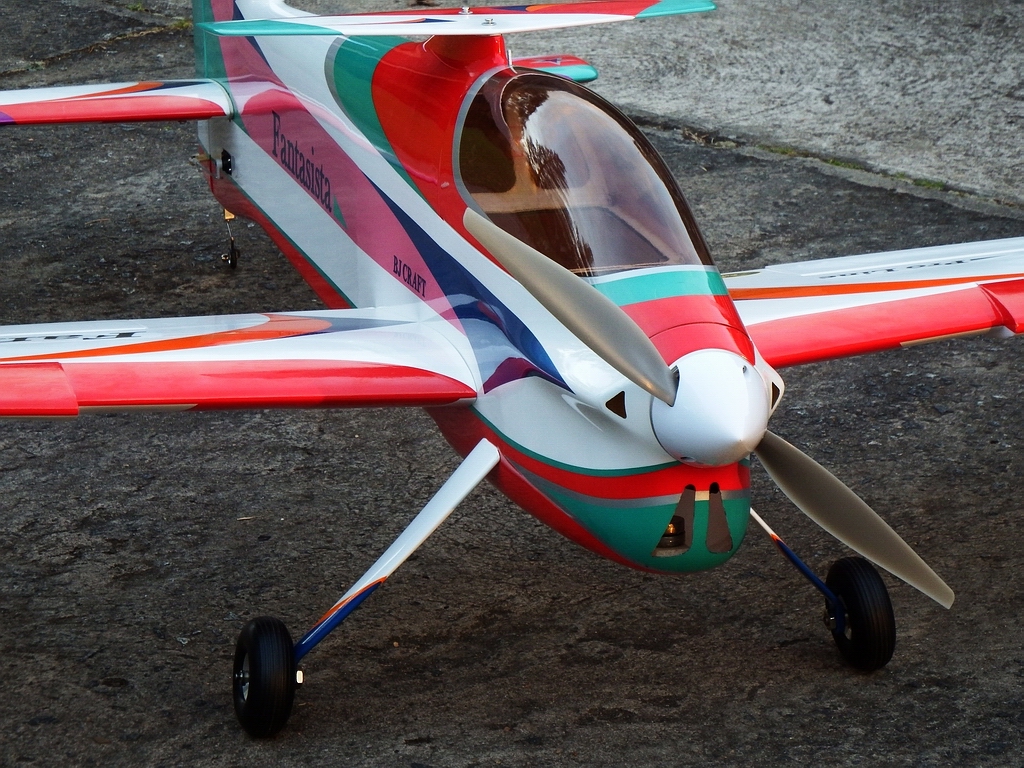

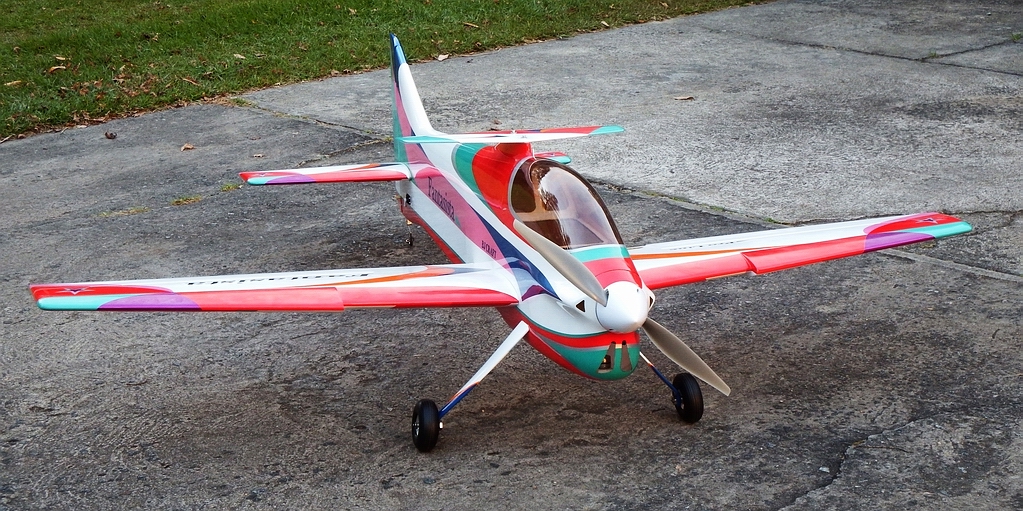

Three Inch aluminium hubbed wheels used in lieu of those supplied to fly off a grass field. |
 |
 |
 |
 |

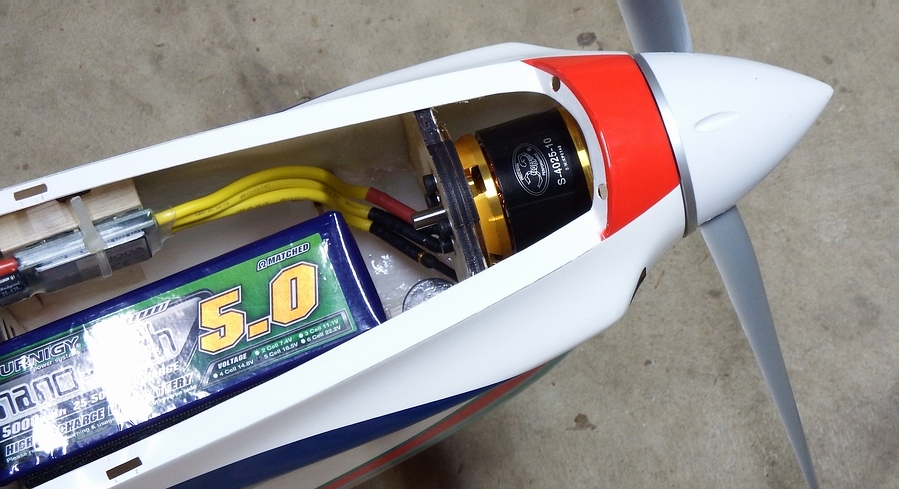

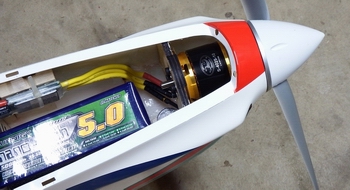

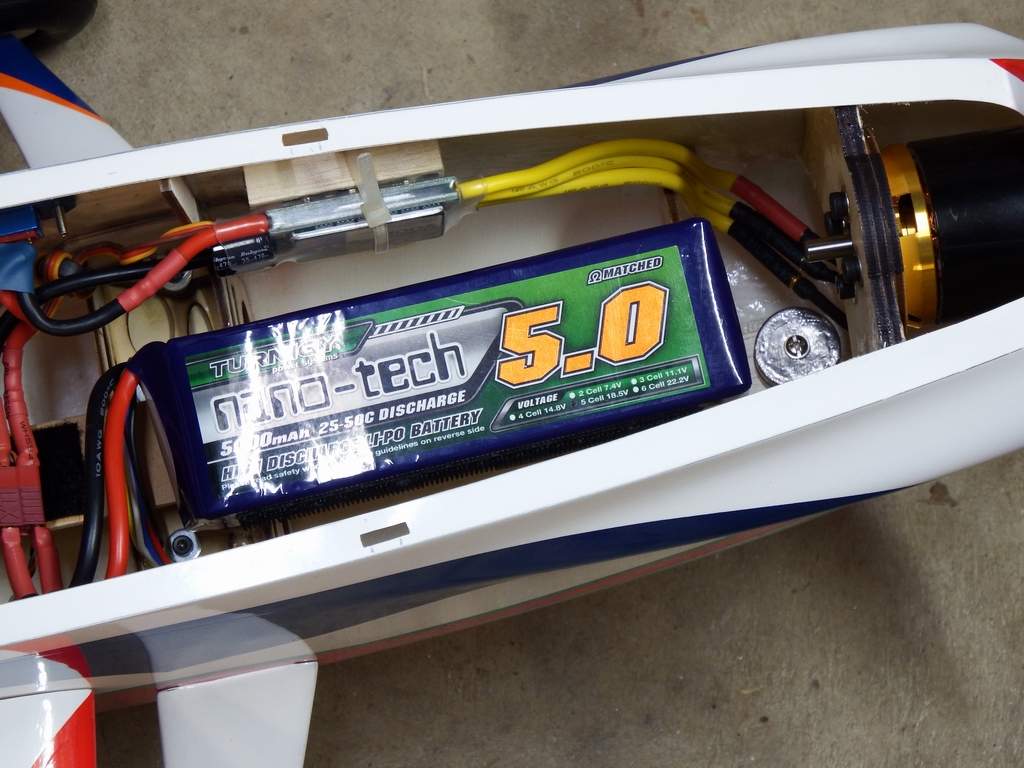

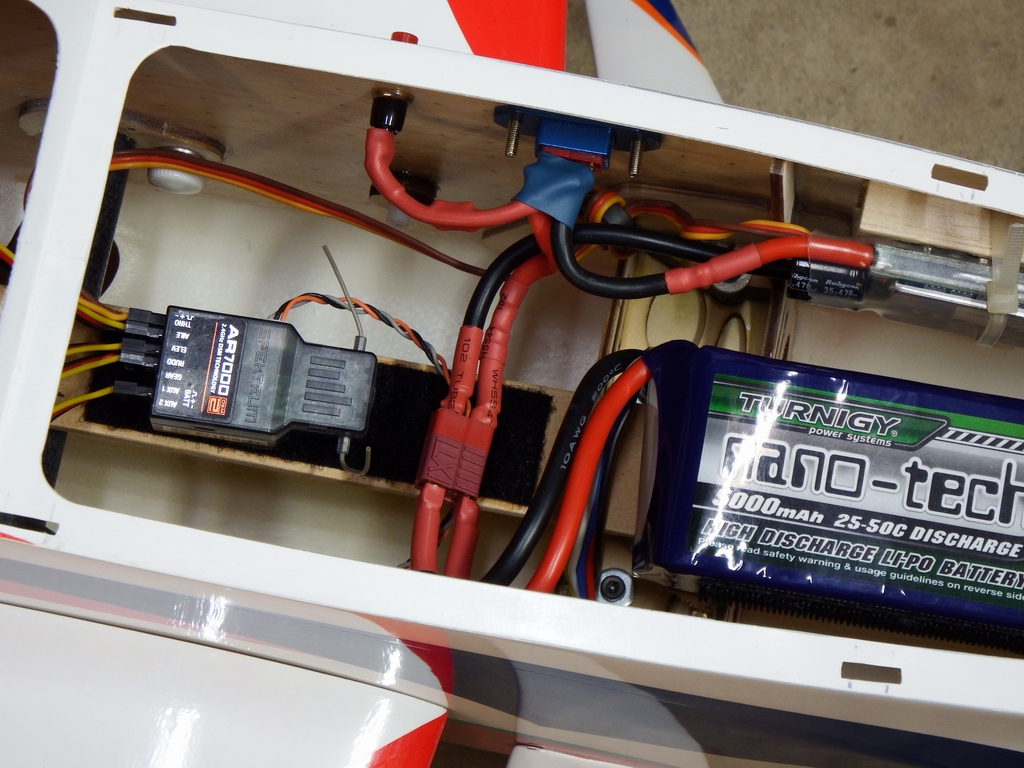

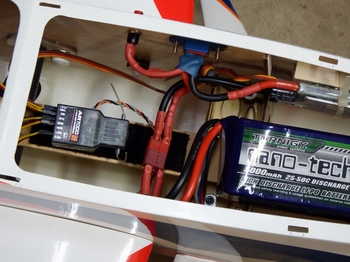

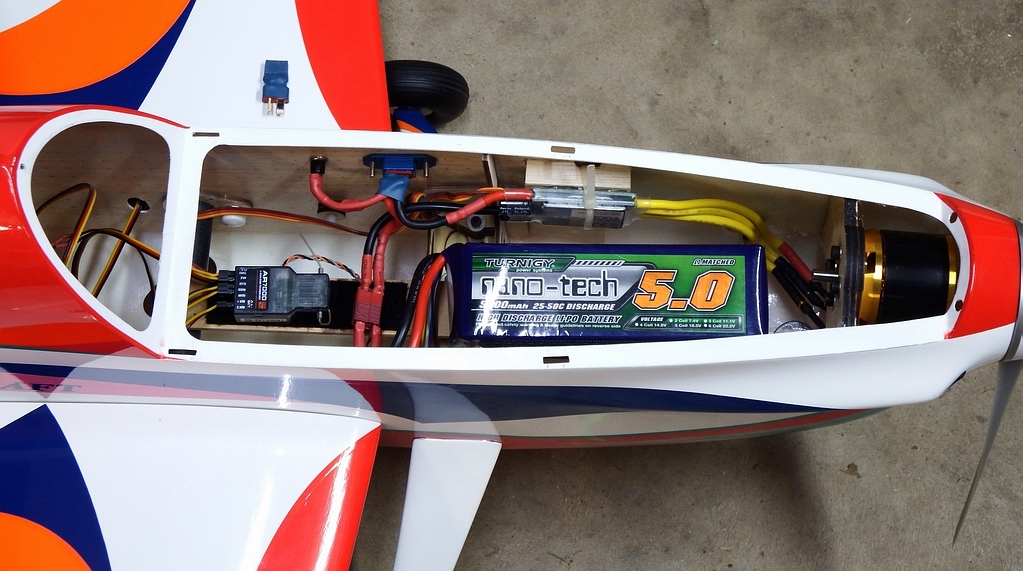

Note the Spark Arrestor and Arming switch mounted in the wall adjacent the speed controller. |
 |
 |

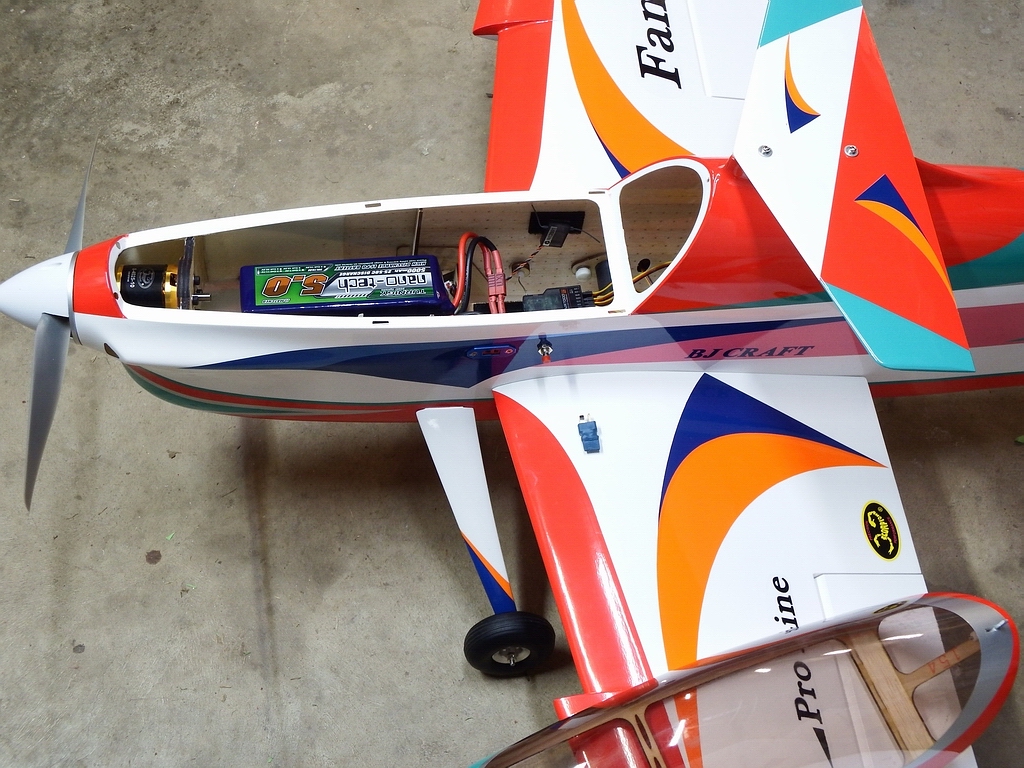

Notice the 75g of lead screwed to the fuselage floor to achieve the recommended COG. |
 |
| Statistics: | |
| Wing Span: | 1500mm |
| Length: | 1600mm |
| Weight: | 3075grams ready to fly with 5S 5000 25C battery. |
| Wing Area: | 36.7dm² |
| Wing Loading: | 83.8grams/dm² - comfortable for this type of plane. |
| Wing Cube Loading: | 13.8grams/(dm²)^1.5; - falls at the top end of the Aerobatic zone for cube loading. |
| Essential Features: |

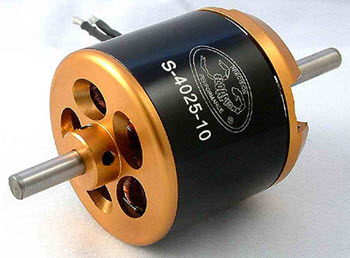

- Electric Powered using: - 15x10 APC 2 blade prop. - Scorpion S4025-10 515kv outrunner - Plenty of power for good aerobatics. - 100A YEP Speed Controller with BEC (1-6S). - 5S 5000 25c+ LiPo battery set. 1300 Watts available to the ESC. - Both an arming switch and spark arrestor system are employed here. - 75g of extra lead weight added near the motor to achieve COG. Battery adjustment used for fine tuning. |
| Radio Setup: |
- Spektrum DX7S radio. - Spektrum AR7000 (incl satelite rx) receiver. - Hitec HS225BB servos for ailerons, elevator and rudder. Very nice quality! |
| Positive Comments: |
- Manufacturing quality is generally very good! An extremely pleasing finish. - Good looking plane! - Really floats quite well even with its high wing loading. - At this early stage it seems like good value for money. - Right from the first flight this is a very enjoyable plane to fly! - For the initial flights, virtually no trim adjustment was made. |
| Negative Comments: |
- Design comments: - A good, English manual should be provided!! - All parts to be glued to the fuselage walls must employ fibreglass resin and matting - epoxy does not adhere to the moulded fuselage walls - probably due to mould release agent used. - Manufacturing faults: - Elevon halves' root face is not parallel to the fuselage walls when mounted on the carbon tube assembly. A thin, tapered shim was required to fill the gap! |
| June 2014 - Completed assembly of this plane and have 3 flights at Fagan Park (June-2014) |
||||

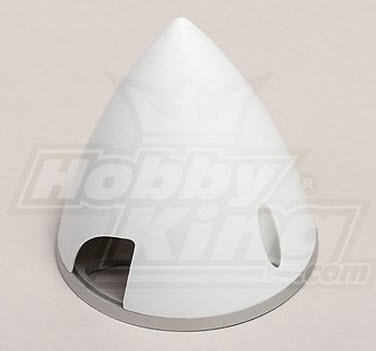

White Spinner 70mm |
 APC 15x10 Propellor |
 OS Motors OMA5025-375 |
||

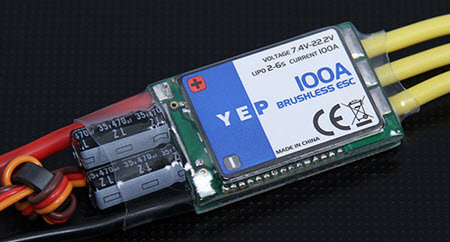

 YEP 100Amp Controller |
|
|||
