Extreme Flight

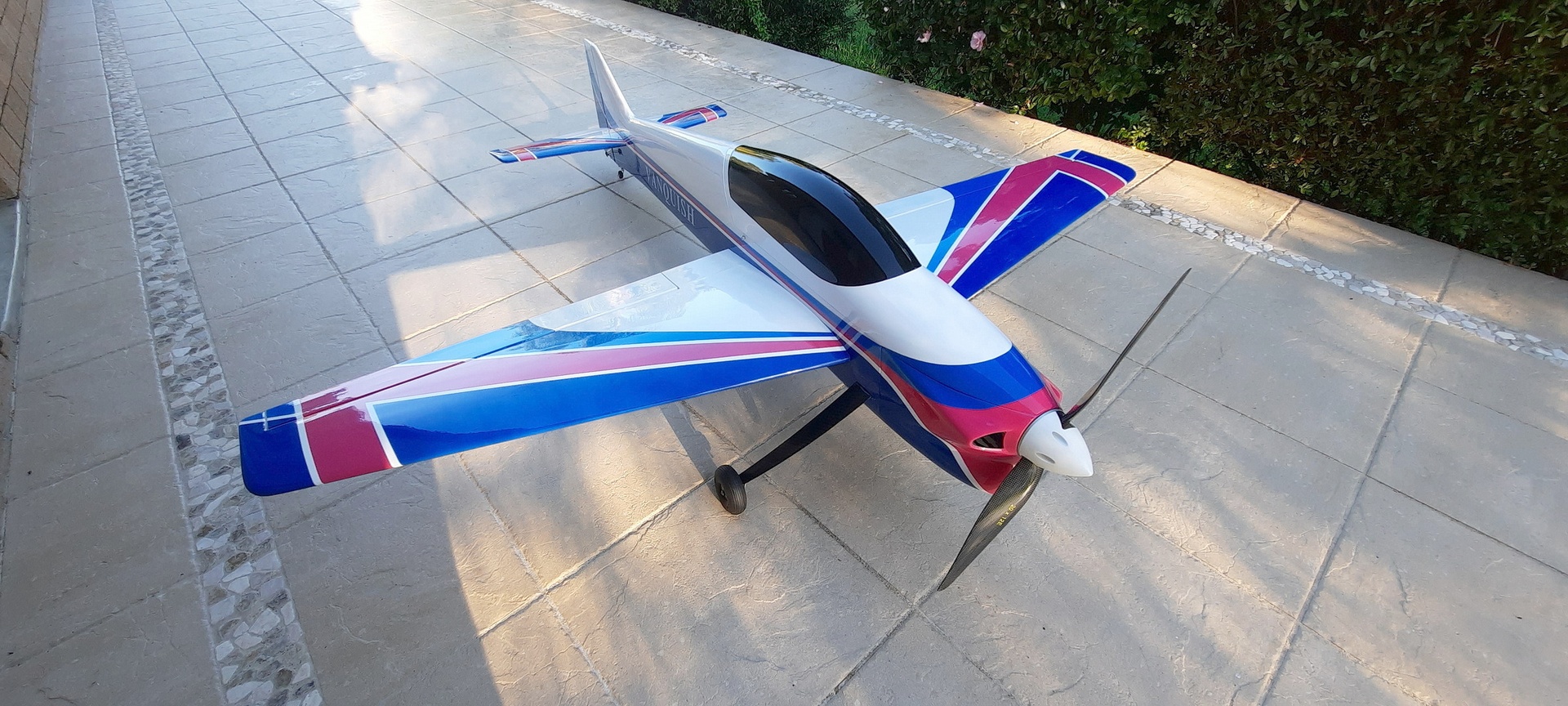

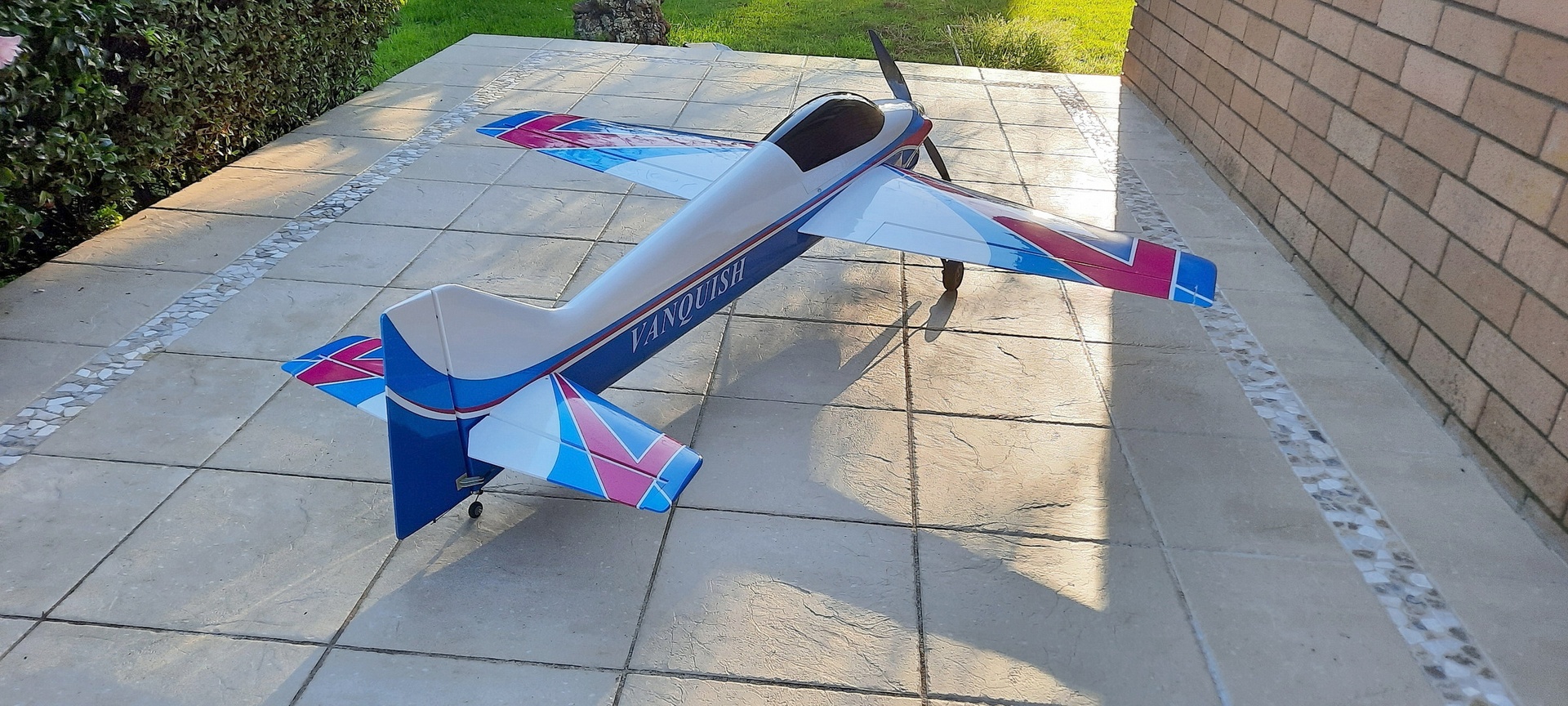

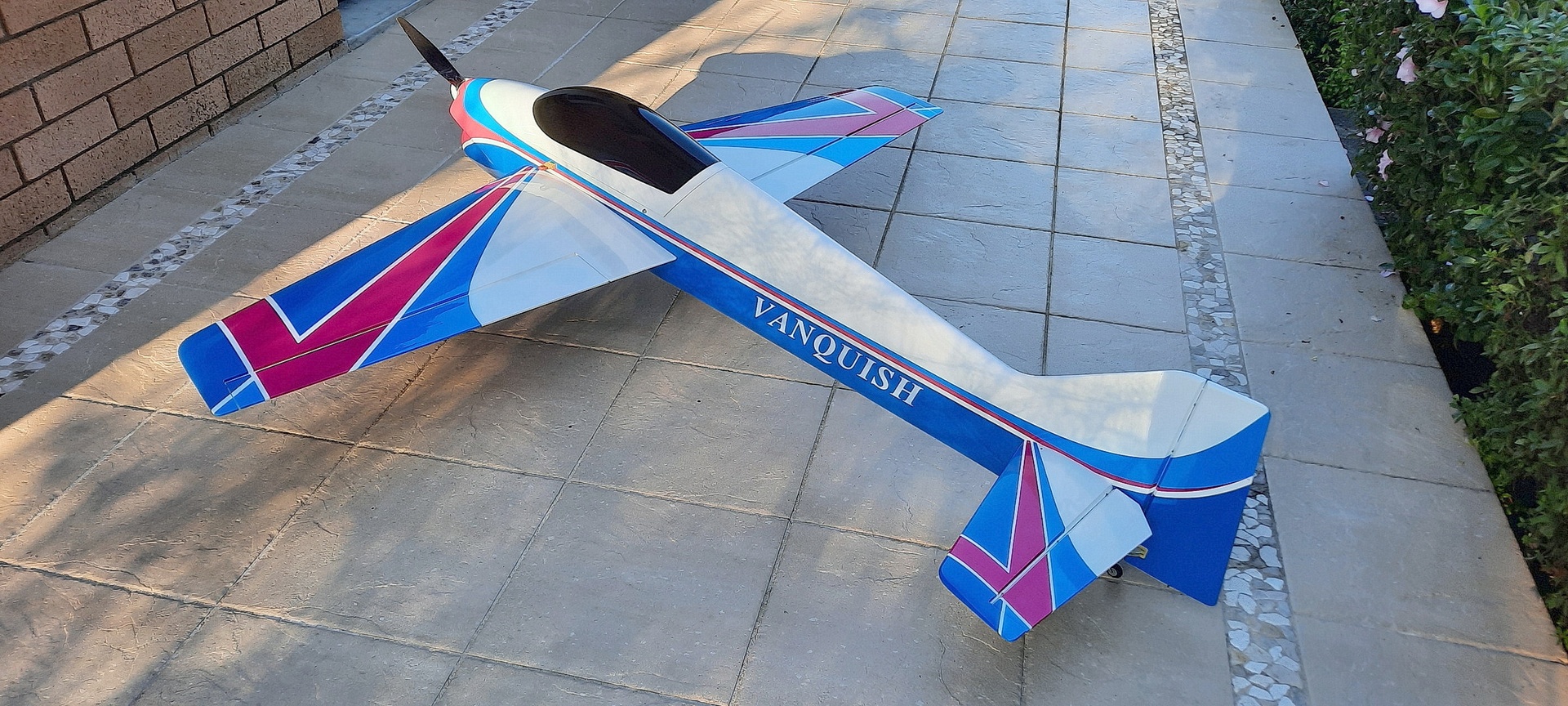

Vanquish 2M

Wingspan - 73.5" (1867mm)
Length - 78" (1981mm)
Wing Area - 854"² (55.1dm²)
Flying Weight - 11lbs (4.9kg)
Colour - Blue, Pink and White

Calm Authority!

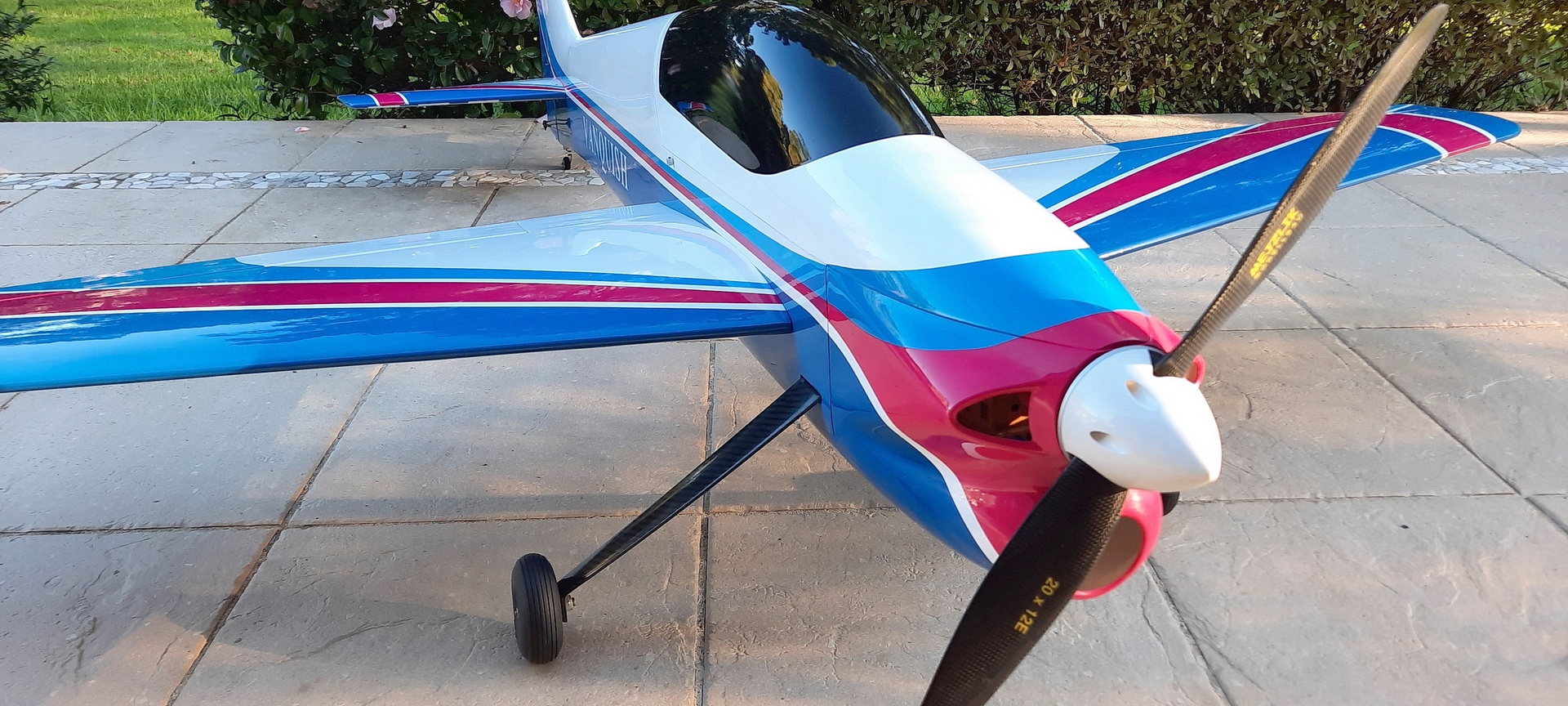

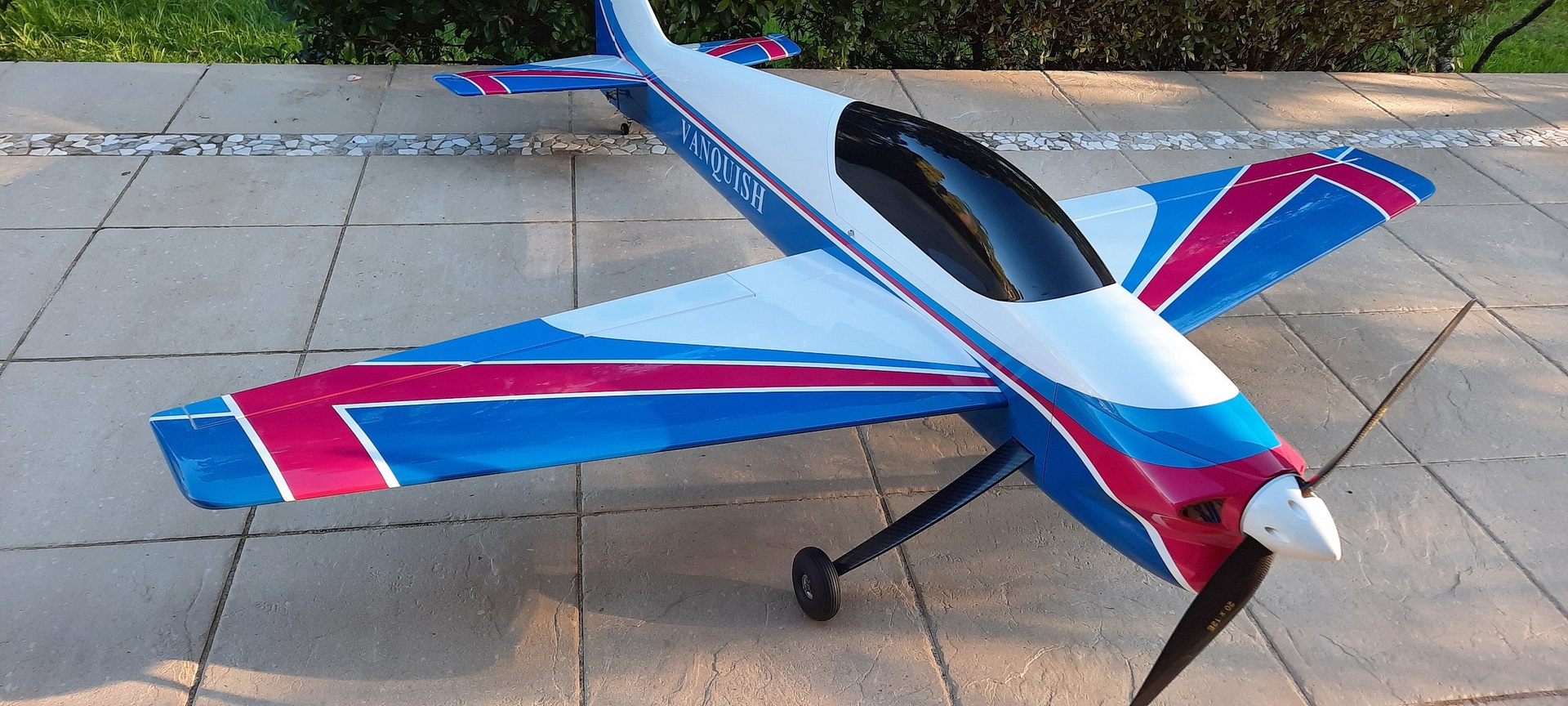

Yes, I do like taking tons of shots!  Who wouldn't??
(Click on any image for a larger version then use arrow keys to navigate)

Video of this plane
Not mine unfortunately

A super looking plane and flies beautifully...  Check it out below

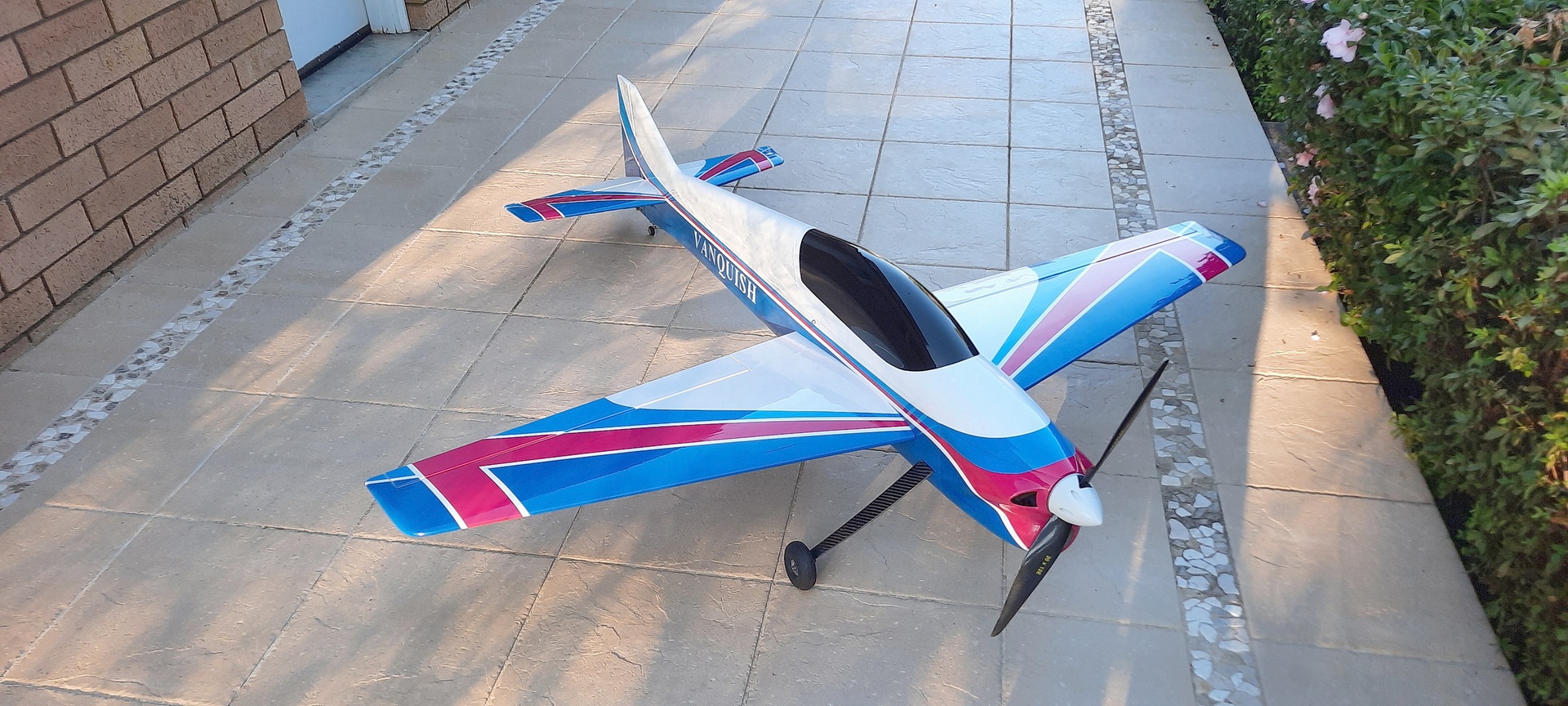

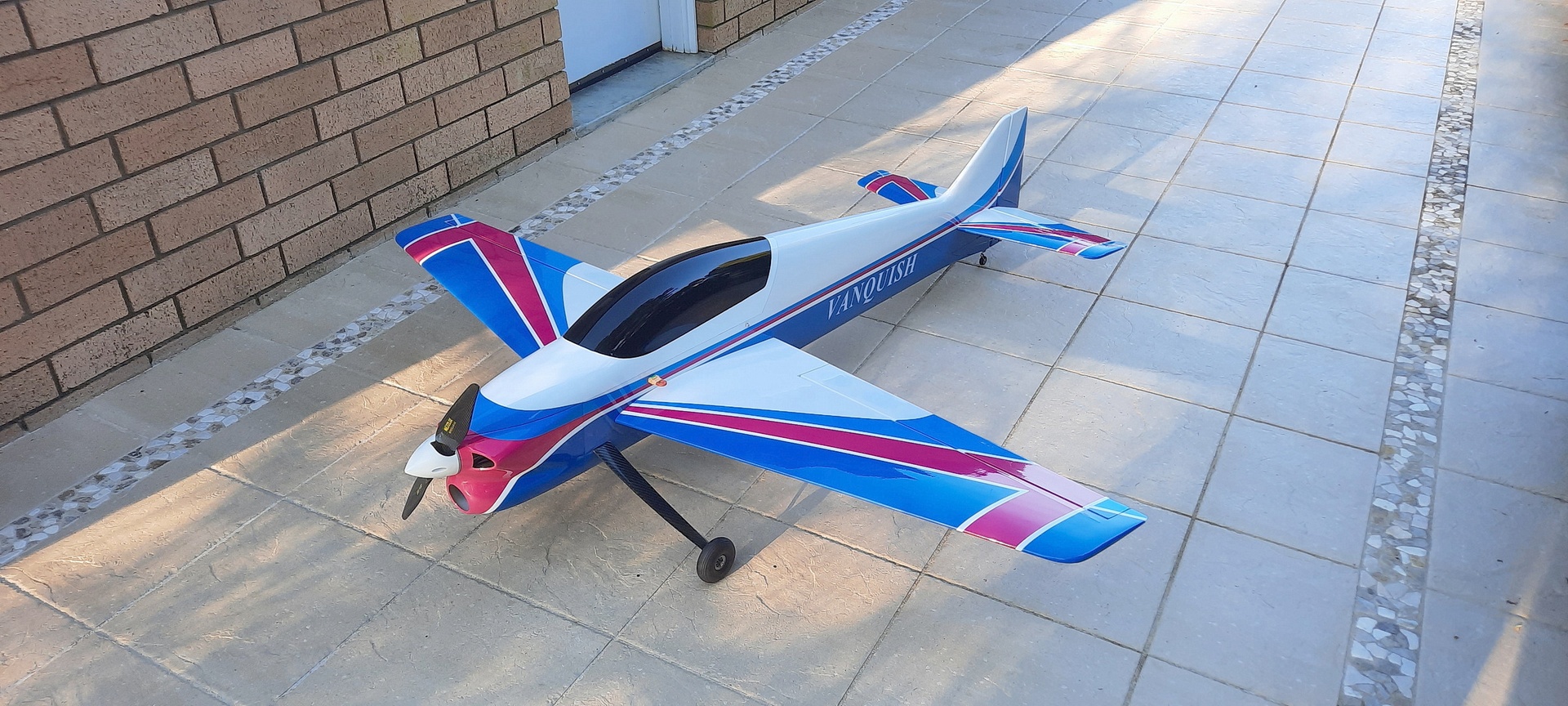

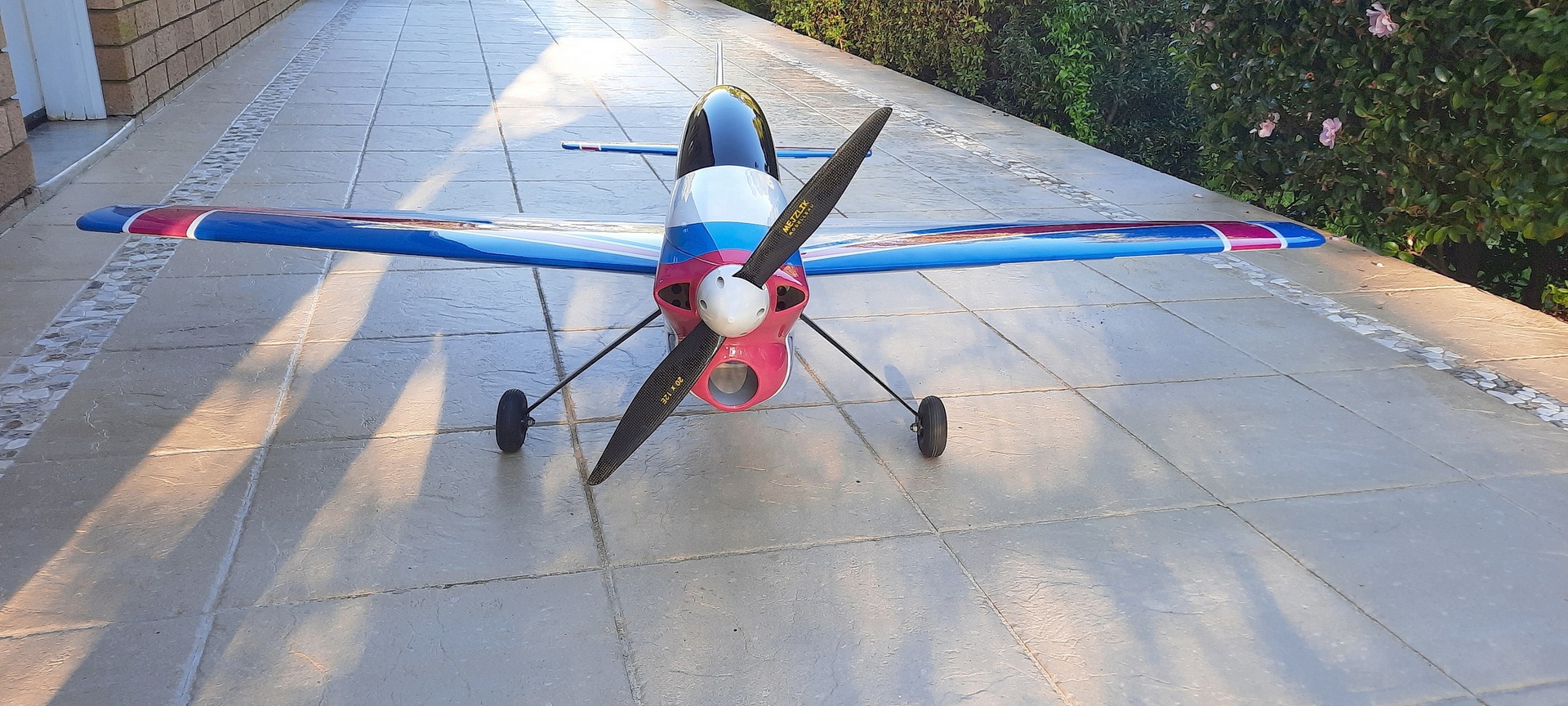

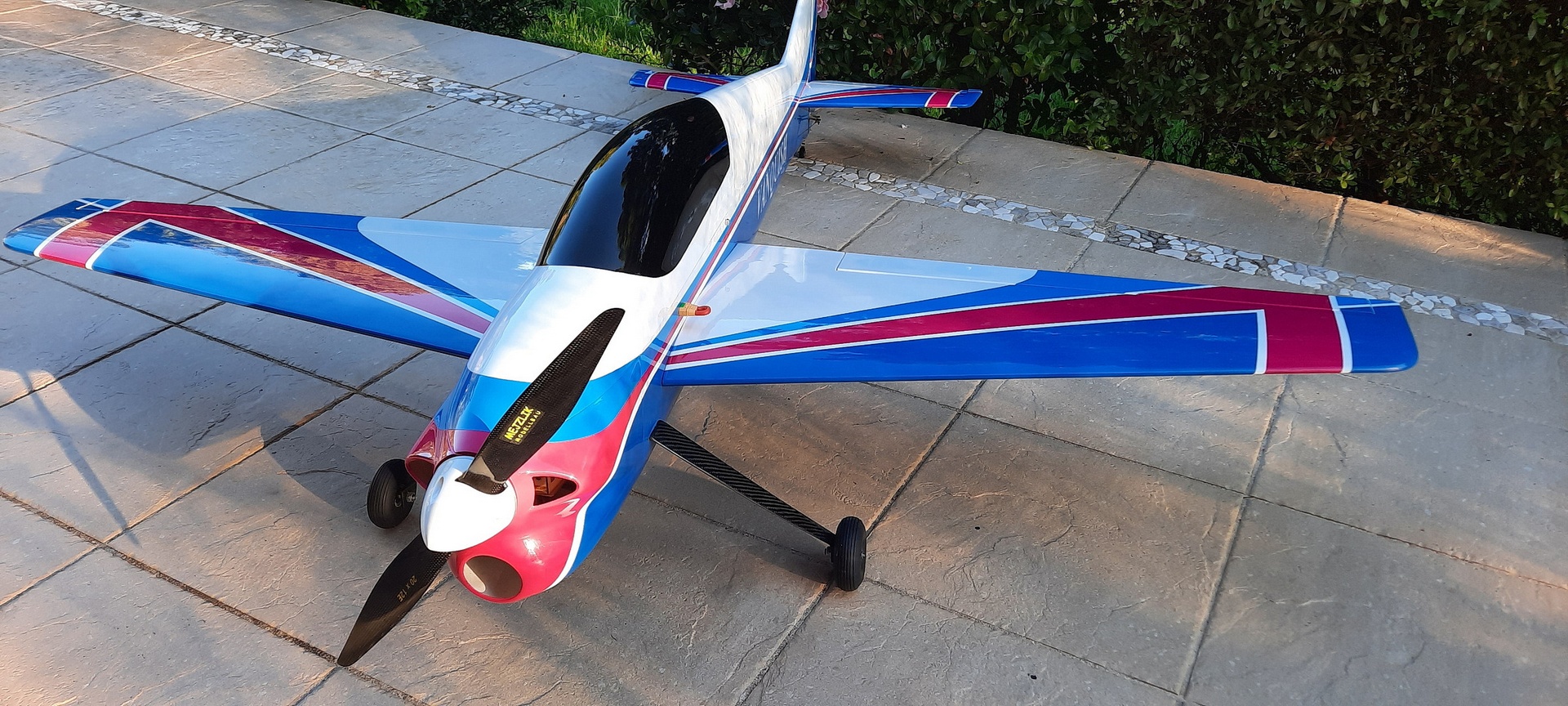

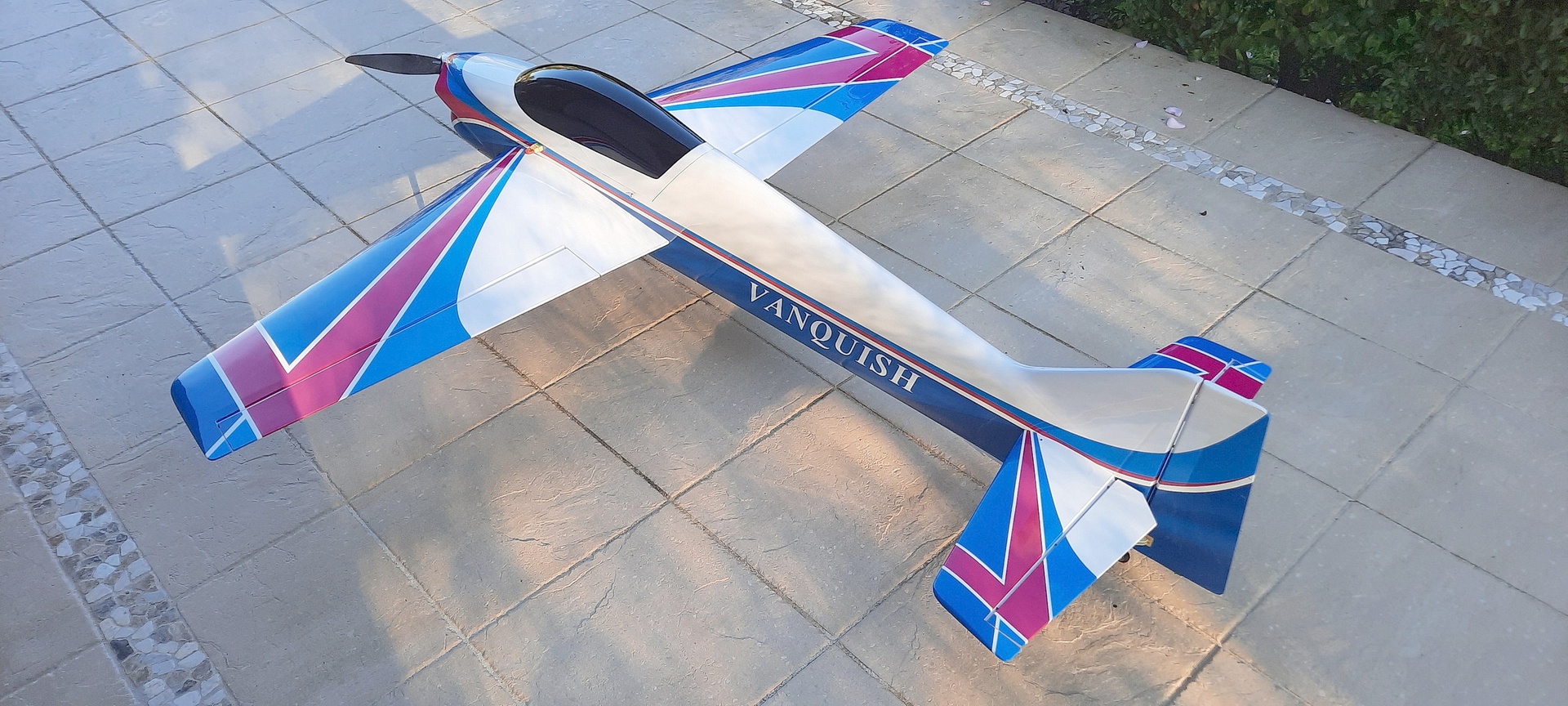

More Nice Pics

No such thing as "enough pictures"
(Click on any image for a larger version then use arrow keys to navigate)

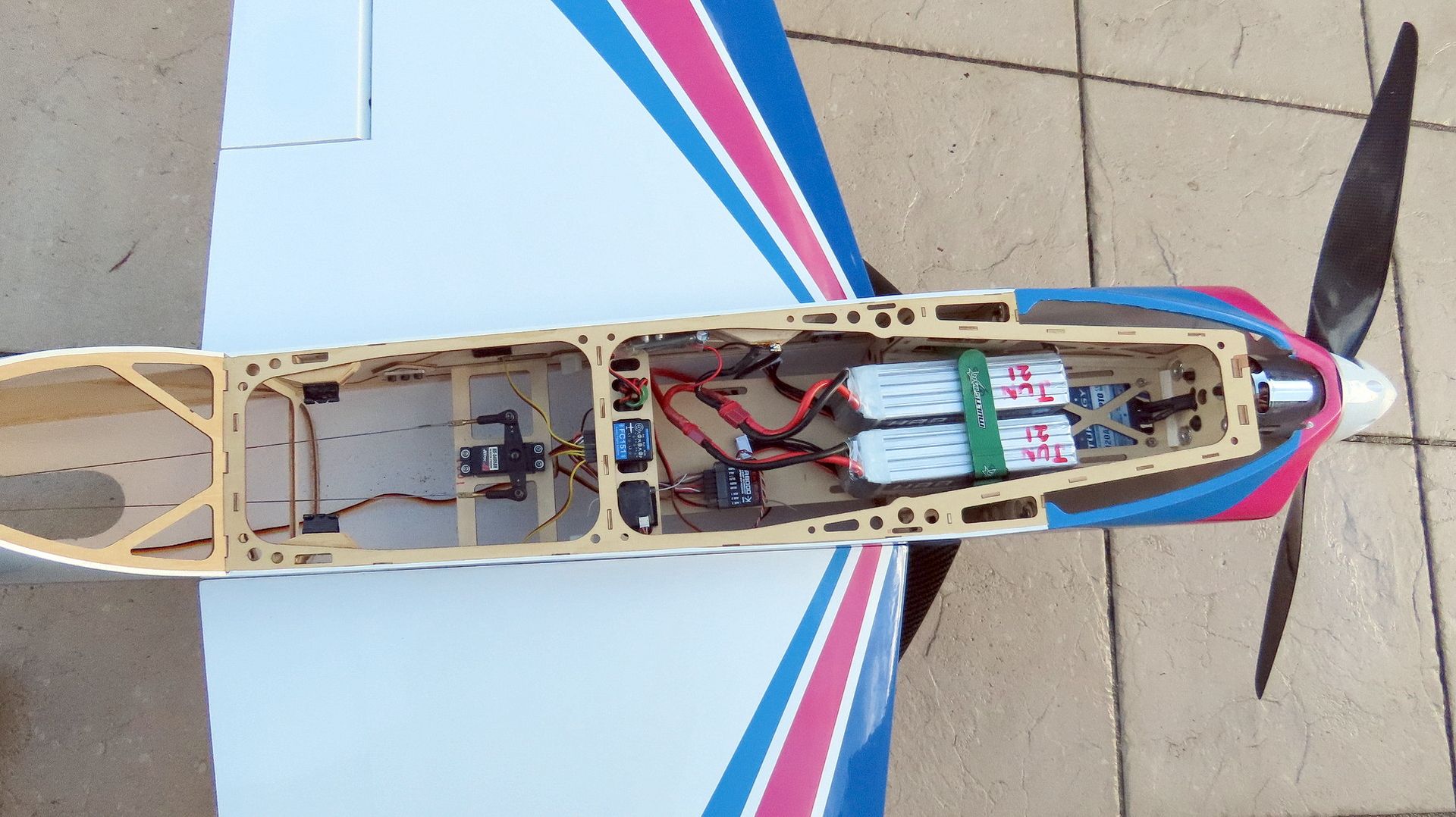

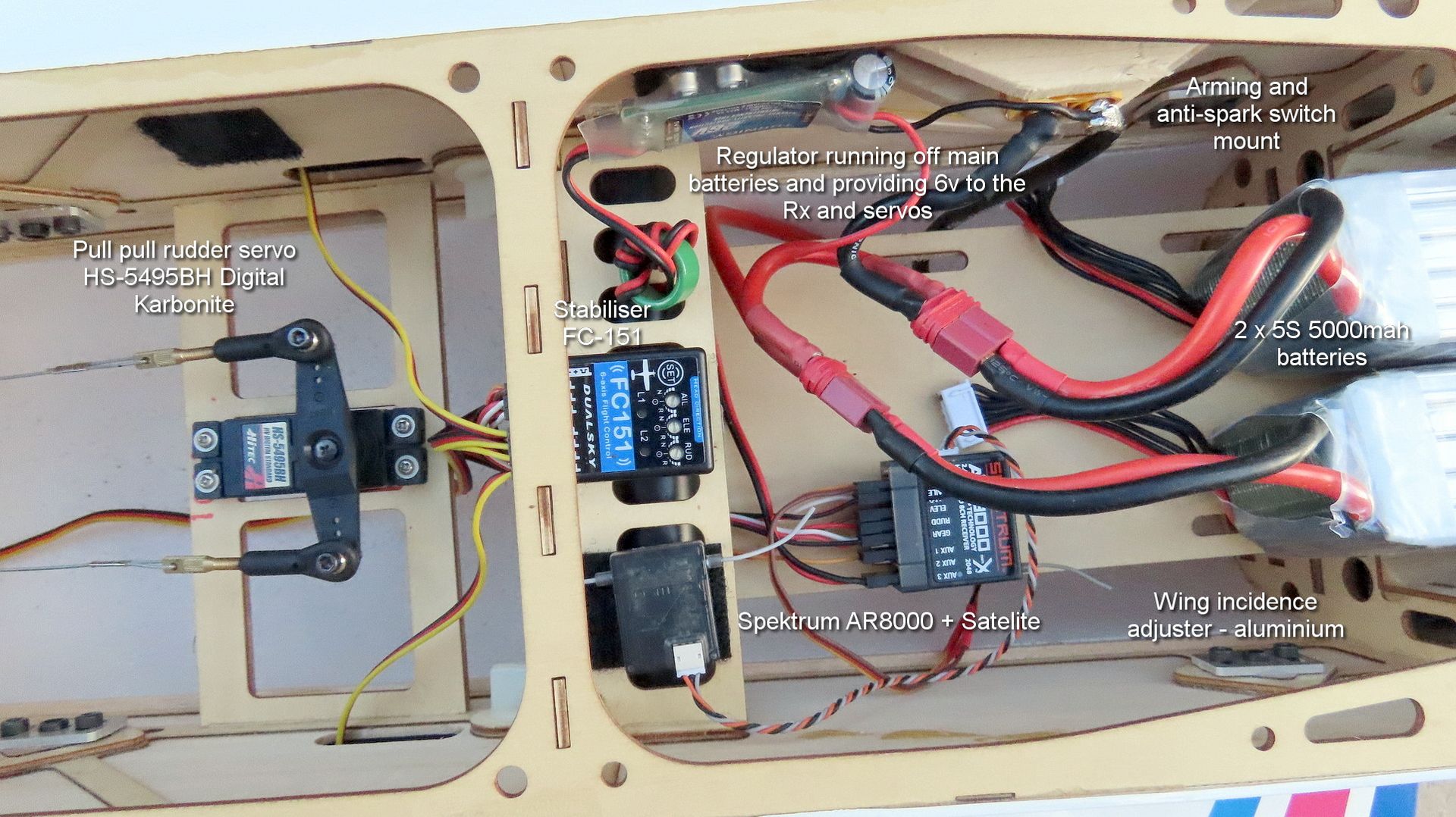

Equipment Installed

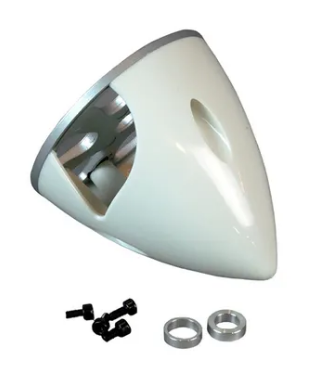

Spinner 76mm

Turbo Spinner (76mm) with aluminium back plate

learn more

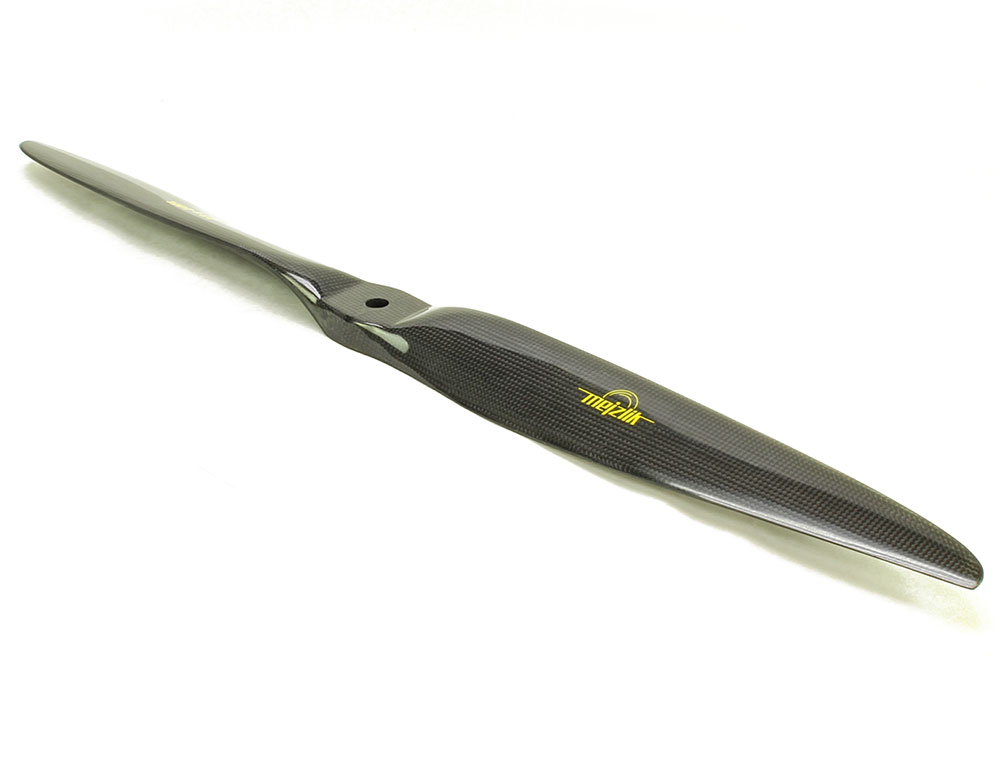

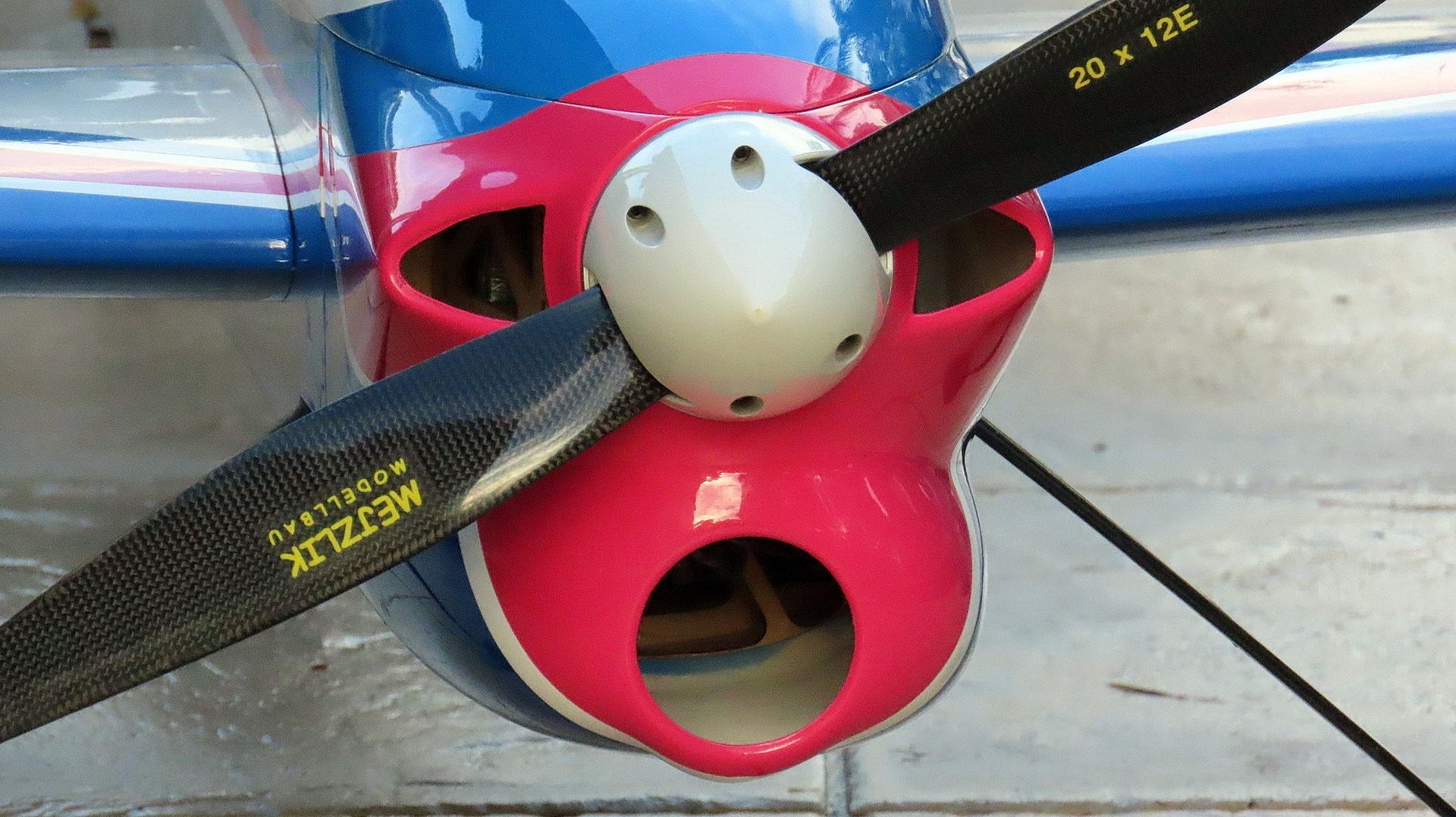

Prop - 20x12E

Mejzlik 20x12E
carbon electric propellor

learn more

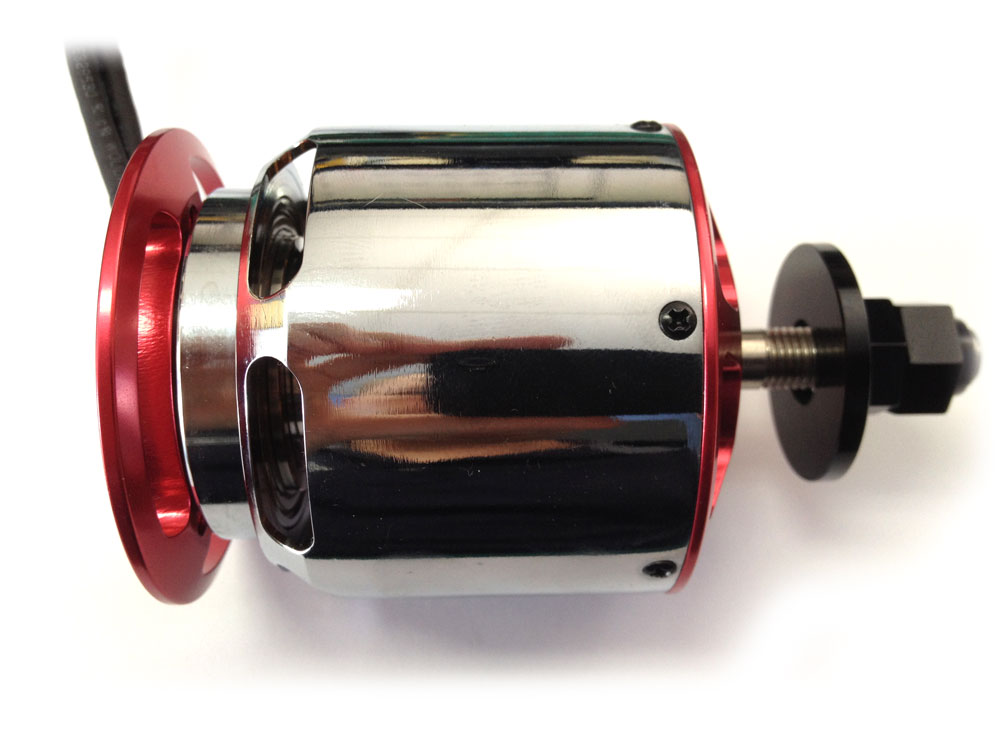

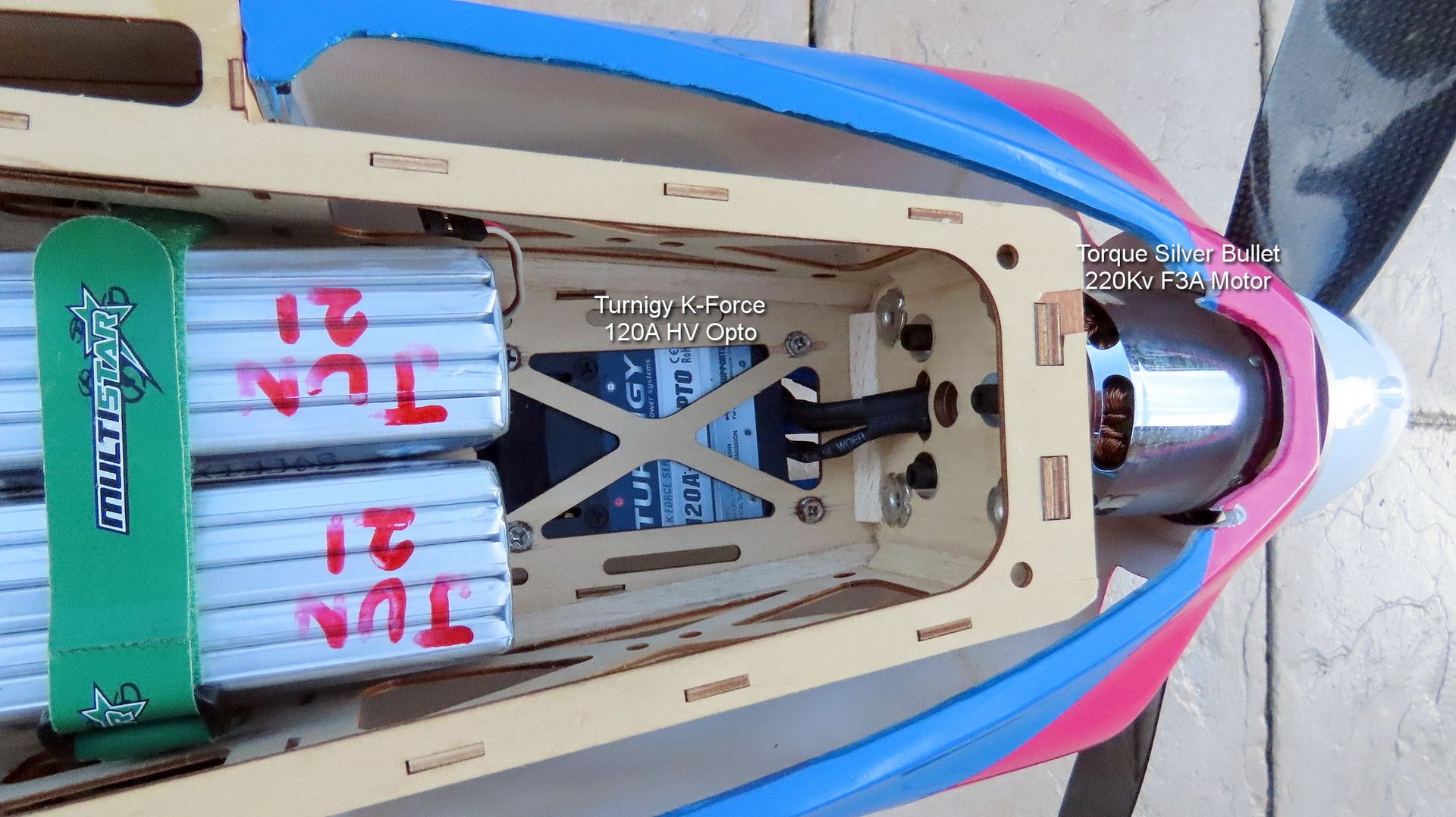

Torque "Silver Bullet"

Torque "Silver Bullet"
220Kv for 10S batteries

learn more

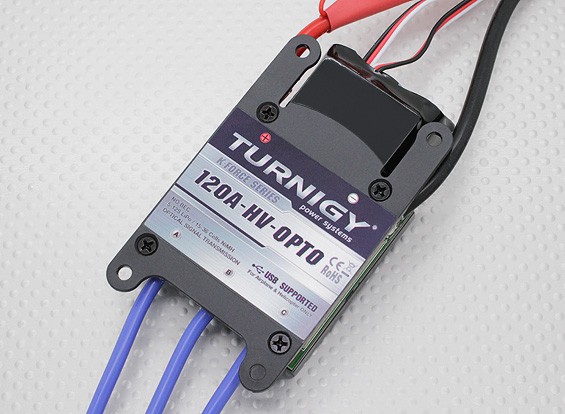

K-Force 120A ESC

Turnigy K-Force 120amp
HV Opto ESC

learn more

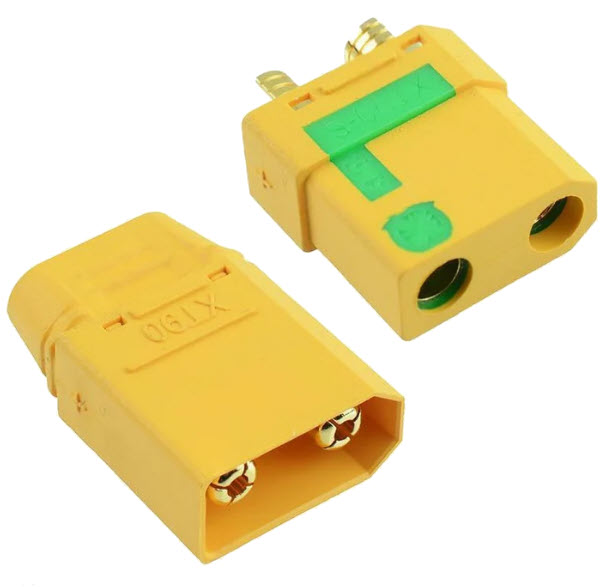

Arming Switch

The XT90 Spark Arrestor and Arming Switch with terminal covers

learn more

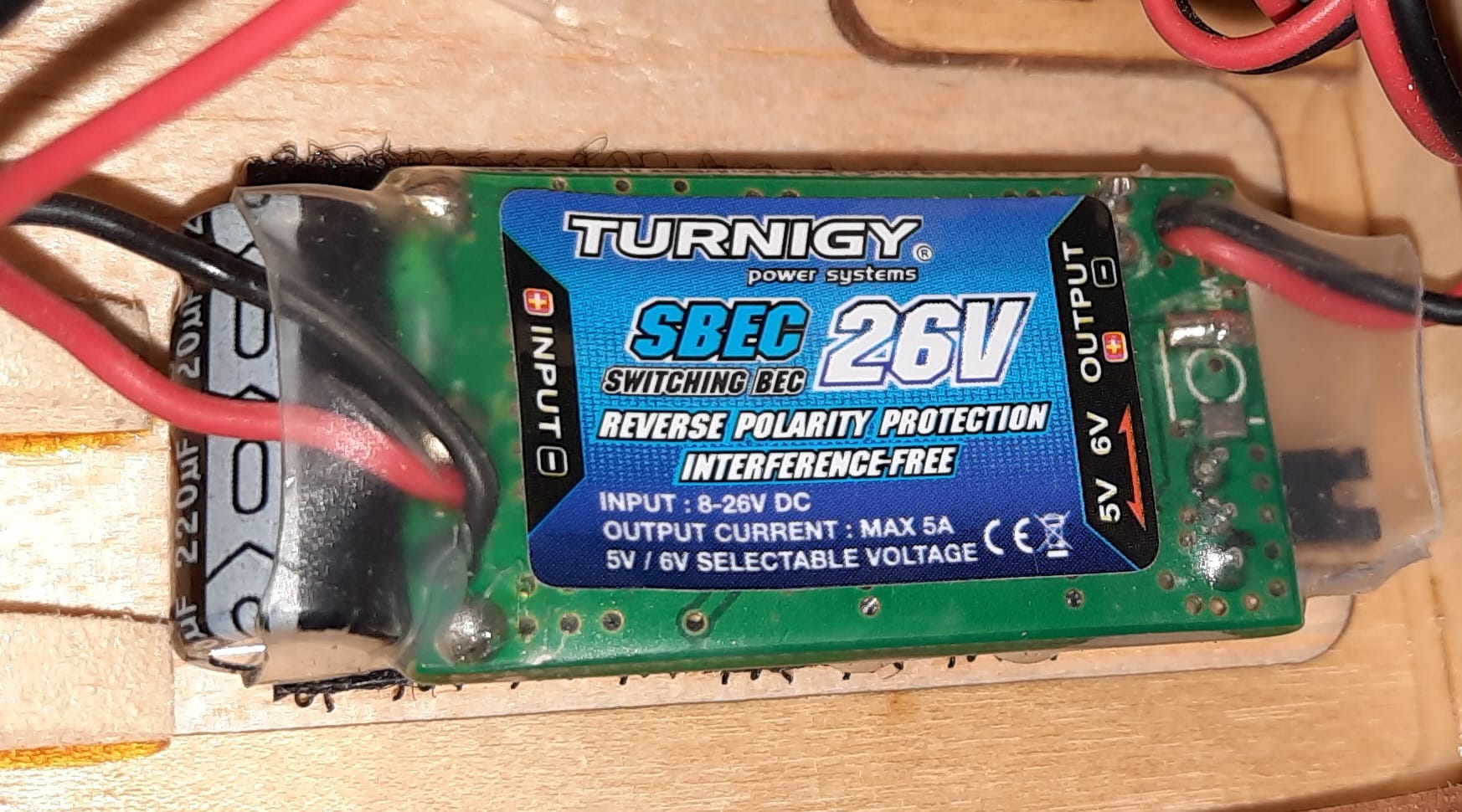

Regulator/SBEC

Turnigy 26V SBEC
for Rx and Servos

learn more

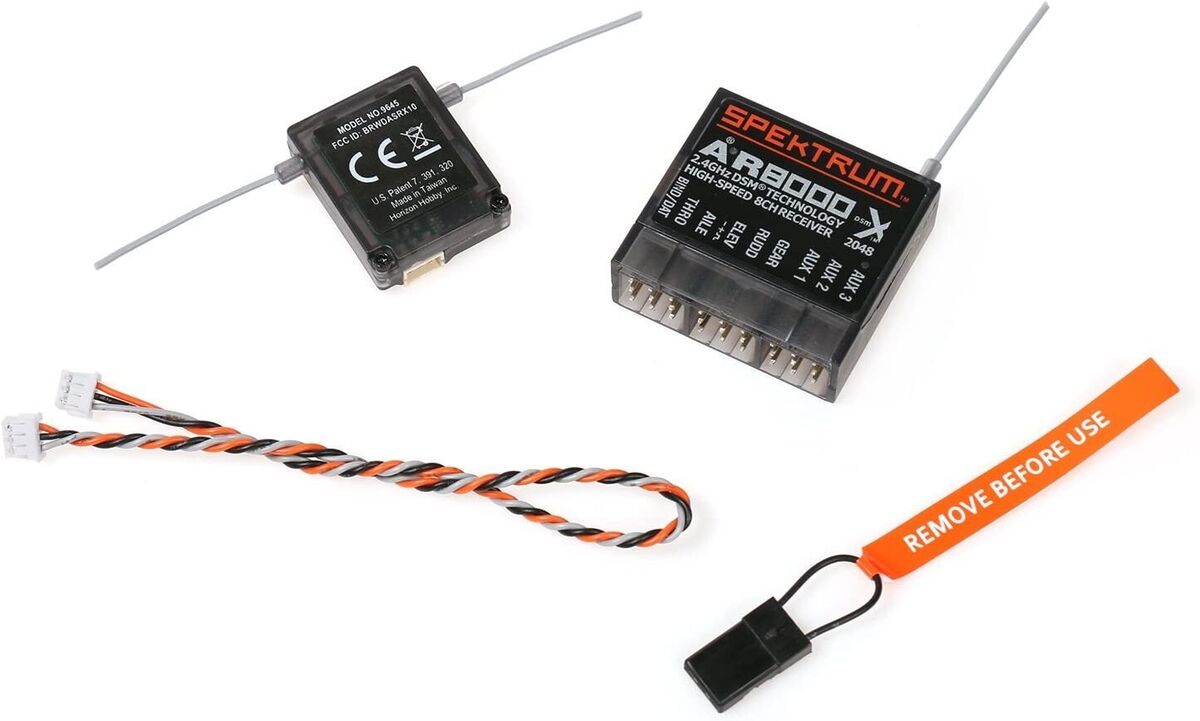

AR8000 + Satelite

Spektrum AR8000 + Satelite.


learn more

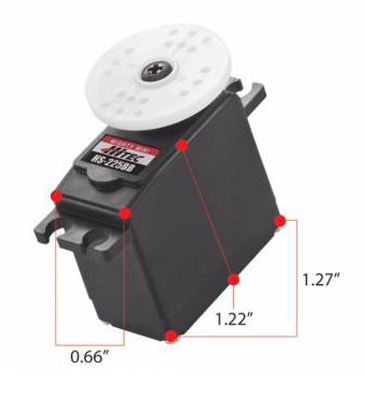

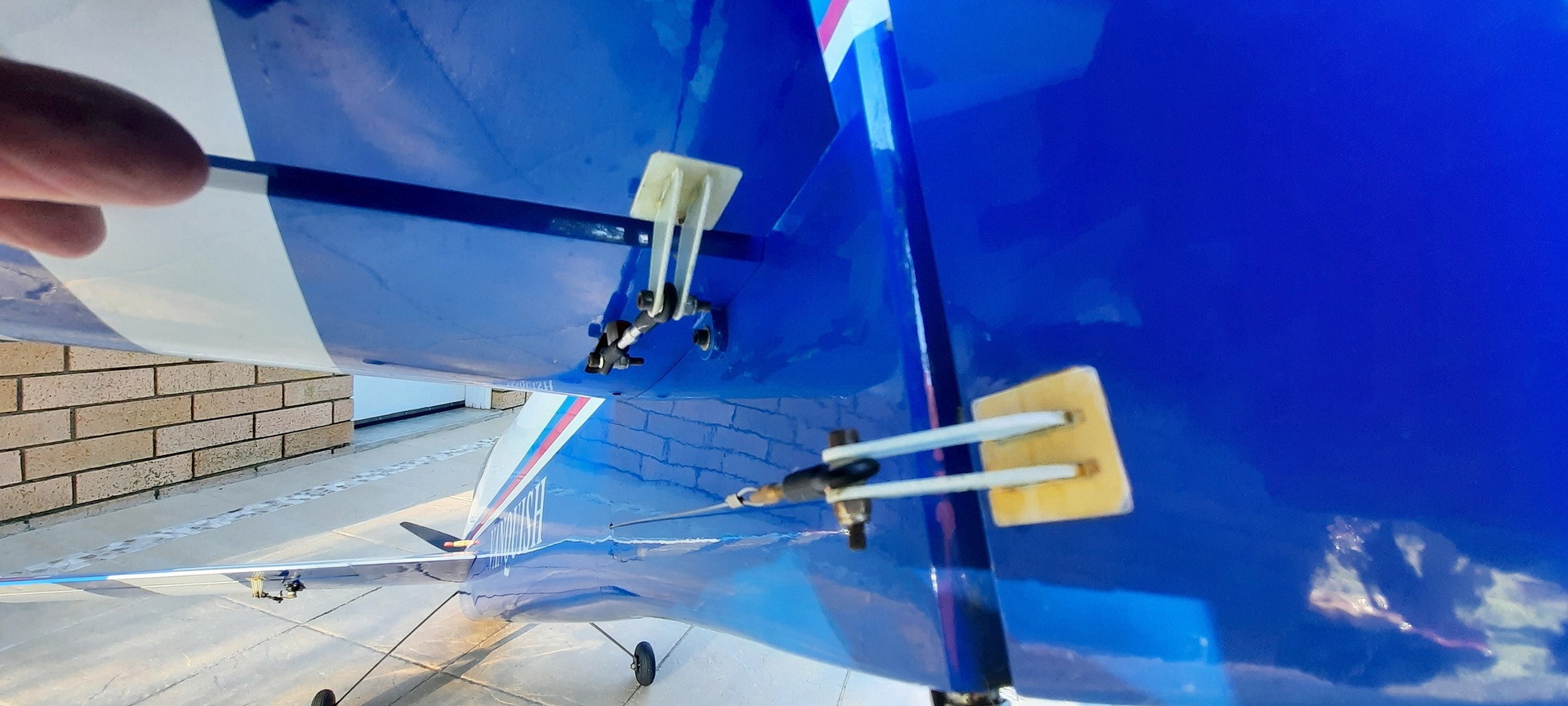

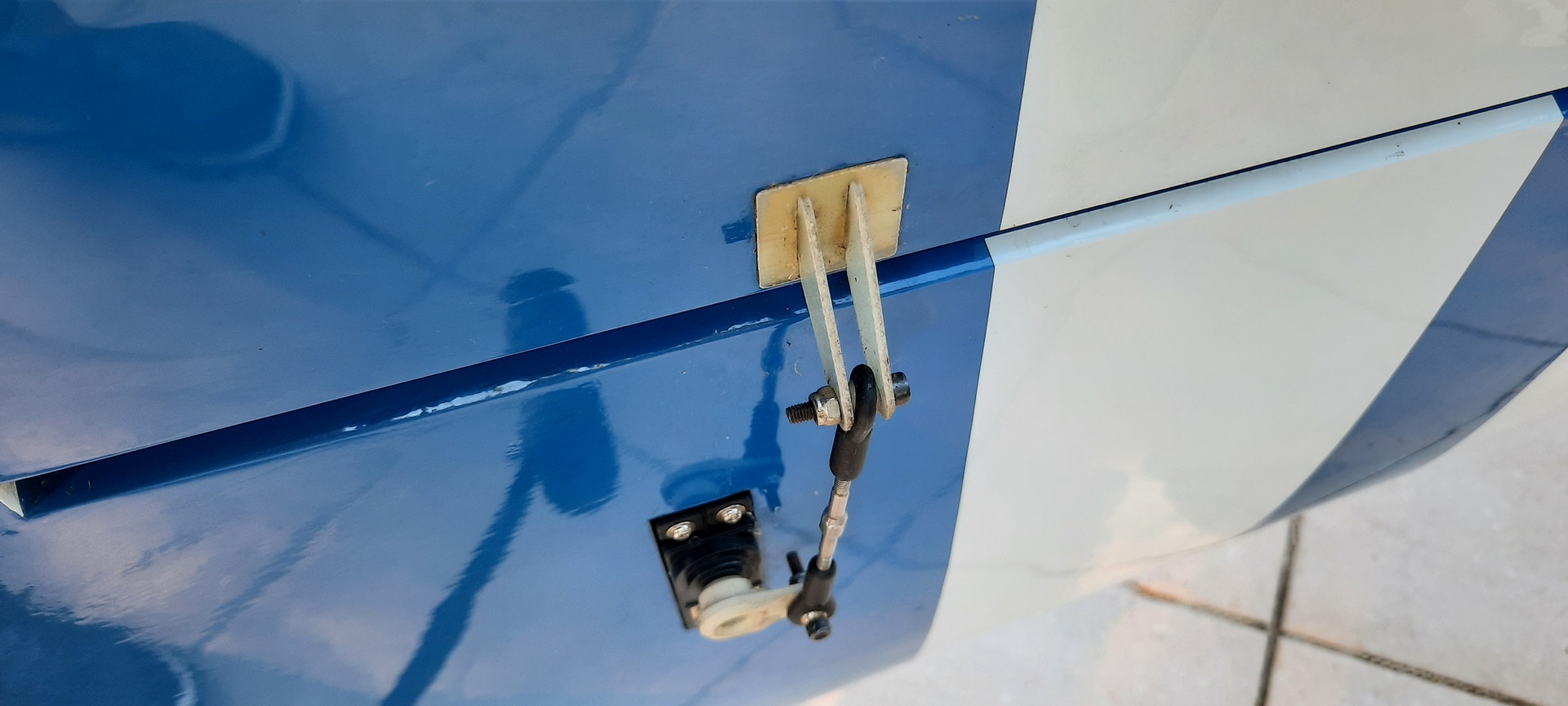

Elevator Servos

2 x Hitec HS-225BB Karbonite
For separated elevators

learn more

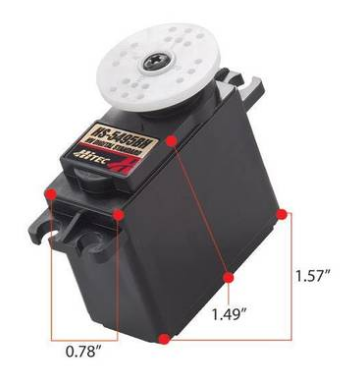

Rudder + Aileron Servos

Hitec HS-5495BH Digital HV
servos for Rudder & Ailerons

learn more

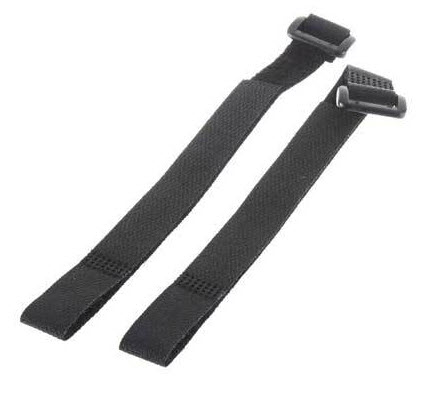

Battery Strap

1 x 400x20mm Velcro battery strap. Suites 2x5S batteries

learn more

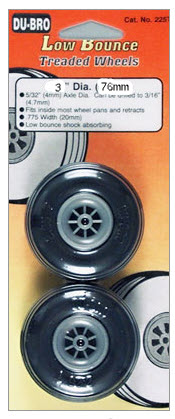

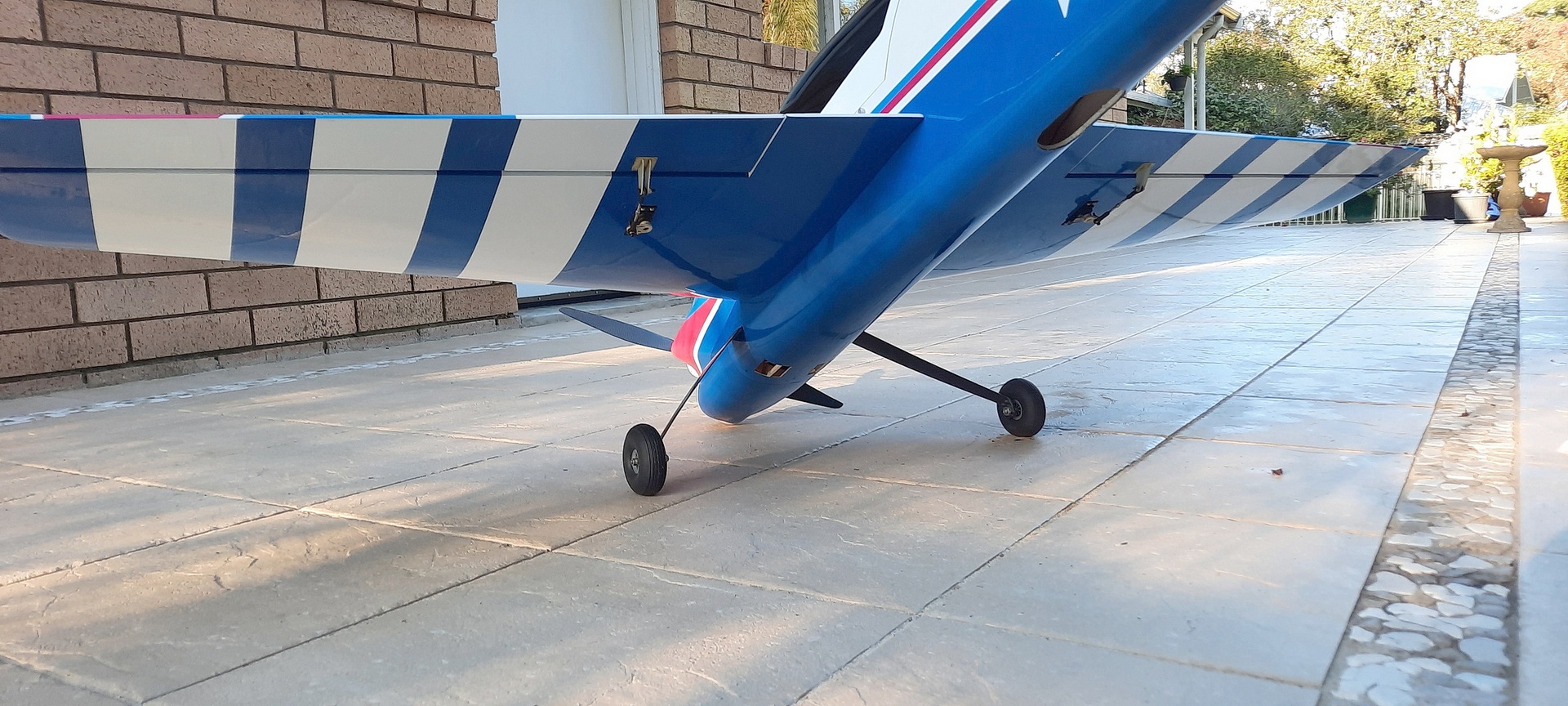

Low Bounce Wheels

Replacement 3" (76mm) Low Bounce wheels by Dubro.  Grass field a little easier to handle

learn more

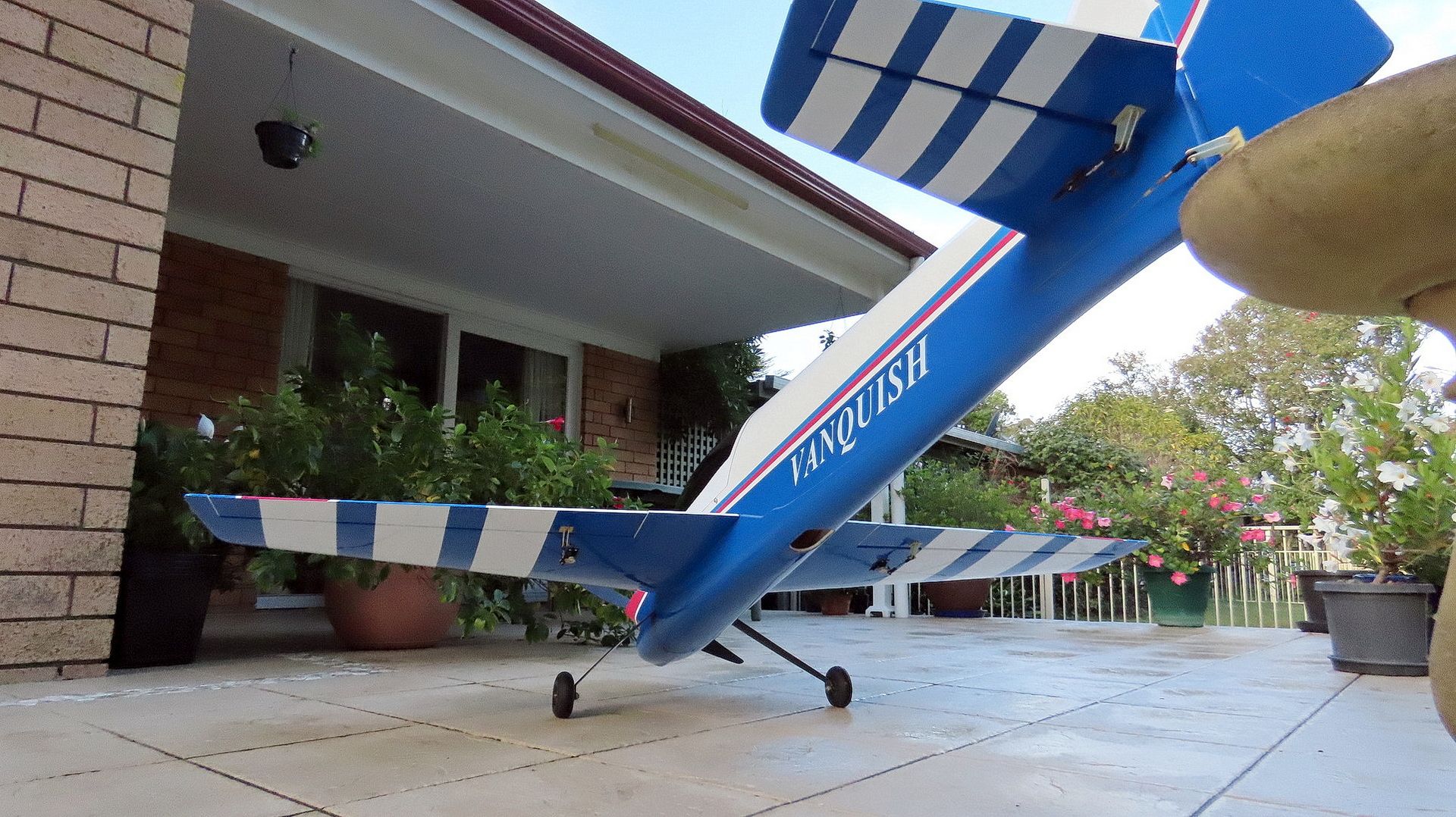

Altogether too Many Pics

(Click on any image for a larger version then use arrow keys to navigate)

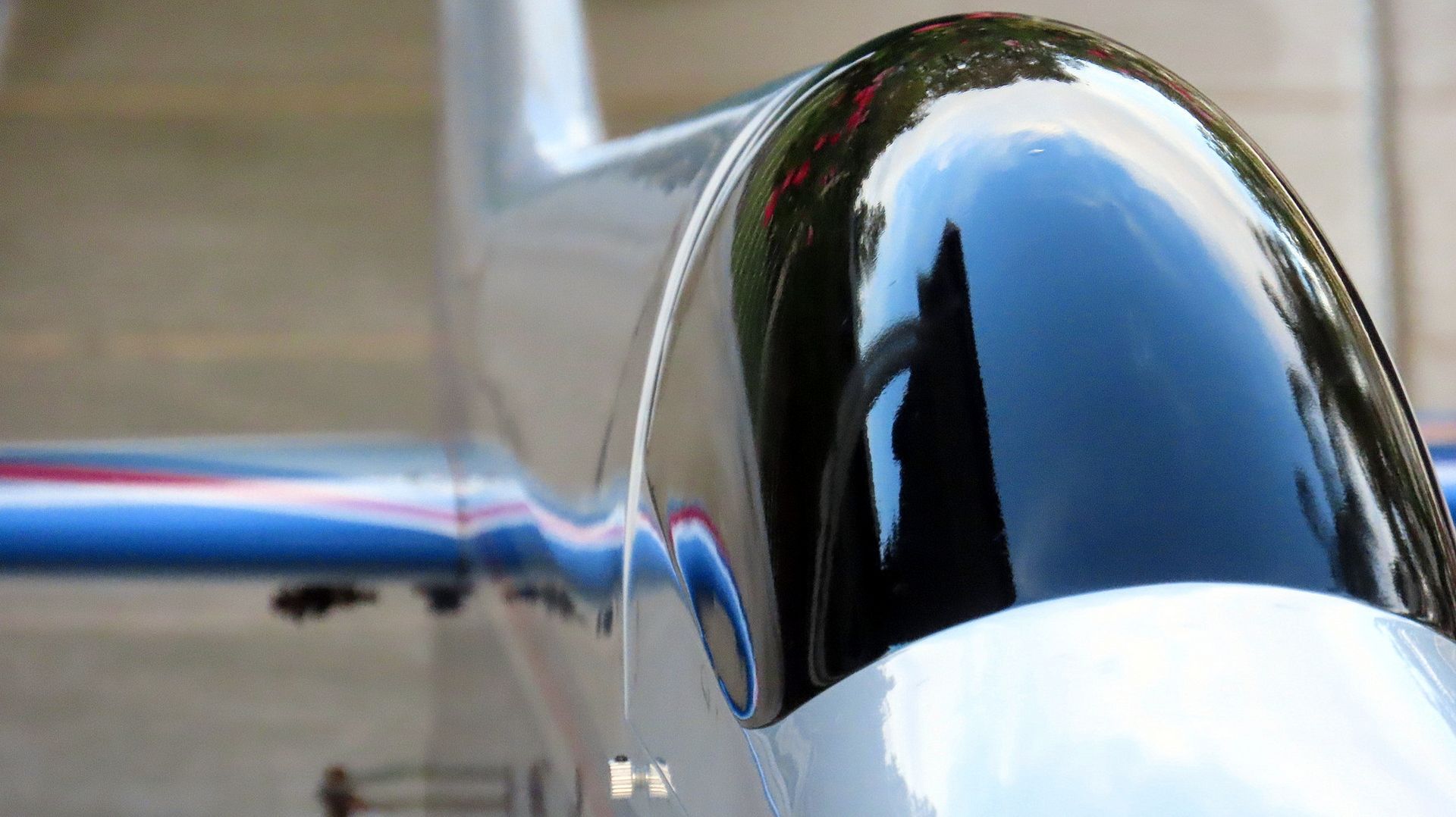

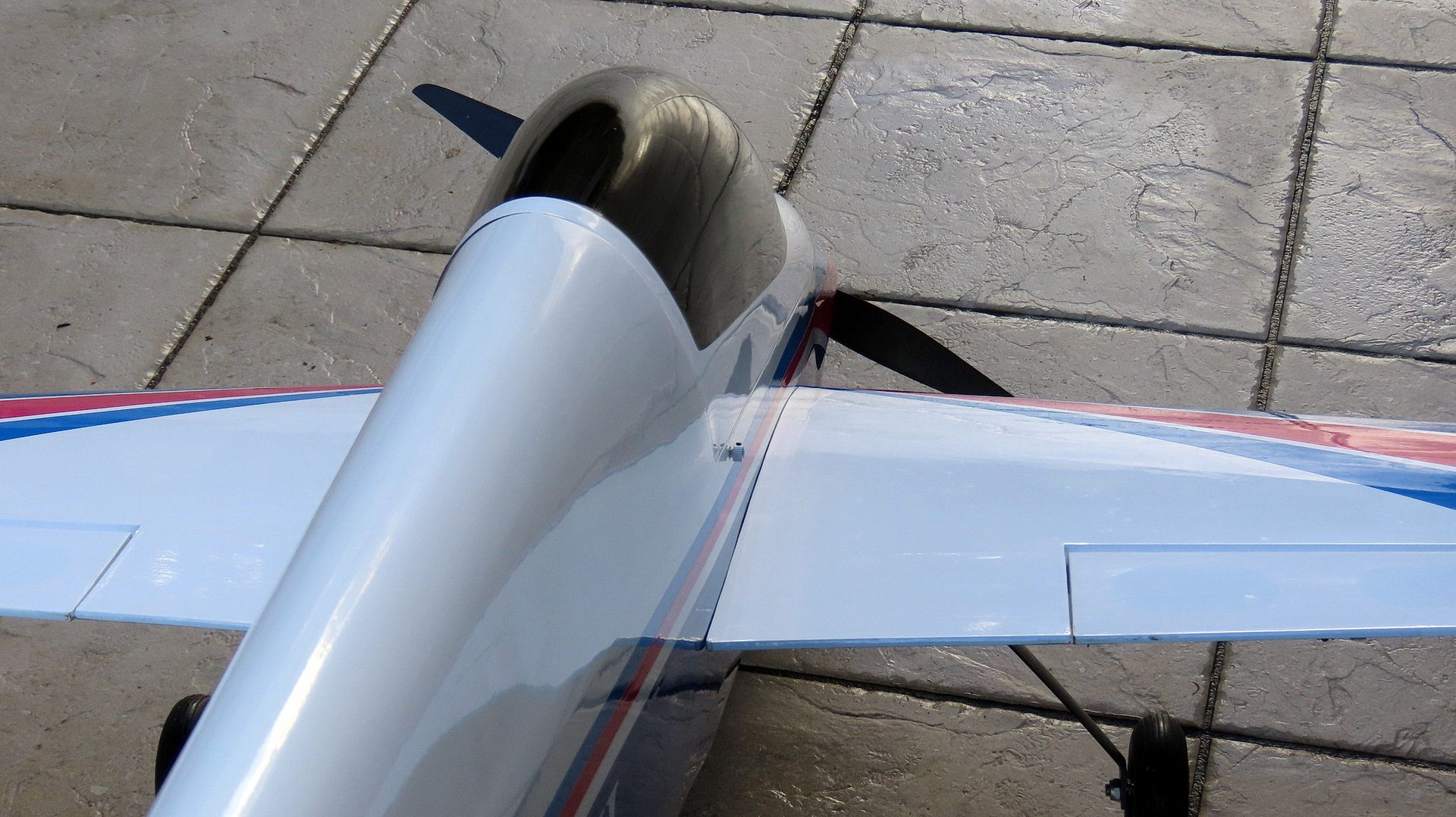

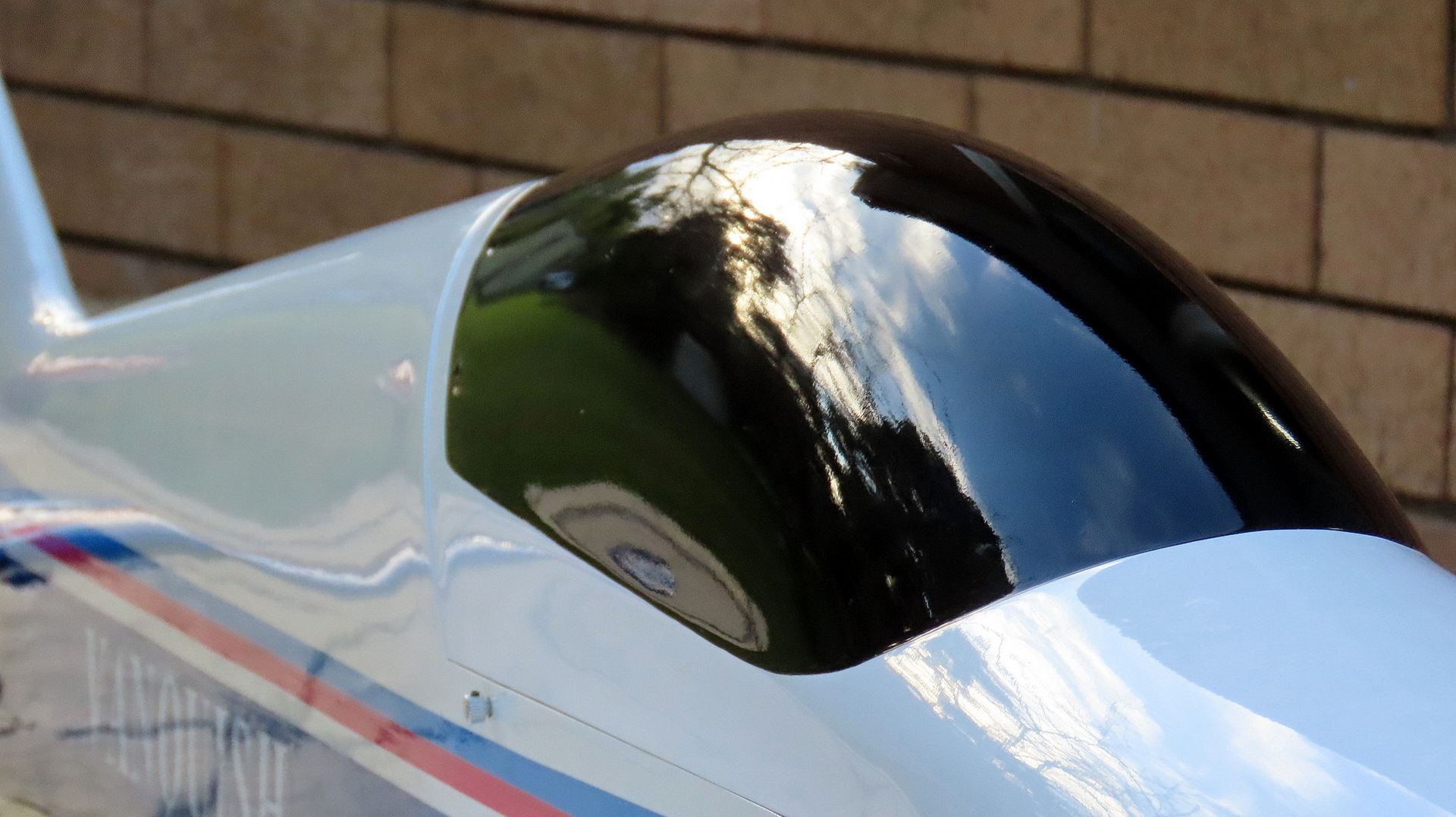

Technical/Artistic Images

(Click on any image for a larger version then use arrow keys to navigate)

Comments after flying for some years

  Well, this plane performs quite superbly and in a manner befitting a pattern plane.  It flies like a dart.  Points to note:
  - This version (circa 2017) of the Vanquish still sports the aluminium wing and stabiliser incedence adjusters - very nice.
  - Not sure what the film covering is but it certainly resists delamination - under the sun - very well.
  - Replacing the original, small, hard wheels with nice 3.5inch Dubro Low Bounce wheels has allowed for very satisfactory performance on the ground.
  - Since I do not compete I have added a stabiliser which helps out when the conditions are rough.  A stabiliser certainly does not do any flying for you!
  - The combination of Torquoe Silver Bullet motor and 20x12e Mejzlik carbon prop provide a quite suitable motor sound in the air.
